Low Velocity Paddlewheel Flow Meter

Original price was: $354.81.Current price is: $98.99.

High Resolution
Low Power
Flow Rates As Low As 0.3 fps
Open Collector Output

Max Operating Pressure

Wetted Materials

Compatible Fittings

Pipe Size Range

Clear

SKU: FP8501A Categories: Flow Instruments, Flow Meters, Paddlewheel Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

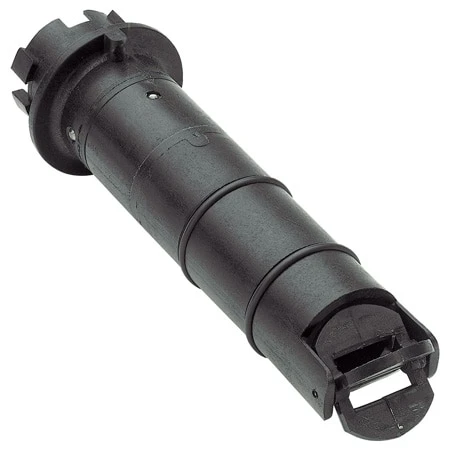

The FP-5600 and FP8500A series low flow sensors are high resolution, low power devices ideal for measuring flow in piping systems with extremely low velocities. Utilizing insertion paddlewheel technology, these sensors are easy to install and maintain. They incorporate state-of-the-art, advanced Hall-effect design, allowing them to operate with a wide range of voltages and current supplies. The sensors have a wide flow range and reverse polarity protection. The insertion design easily adapts to a wide range of applications.

Flow Range

Pipe
Size

Range
(gpm)

0.3
to
19

0.5
to
34

0.8
to
54

1.4
to
94

1.9
to
127

3.2
to
210

4.5
to
300

7.0
to
461

12
to
794

19
to
1247

27
to
1801

47
to
3119

74
to
4915

105
to
6977

SPECIFICATIONS
Output Signal: Open collector, sinking
Output Frequency: 15 Hz per fps nominal
Operating Range: 0.3 to 20 fps
Pressure/Temperature:
PP sensor housing: 180 psi @ 20°C (68°F), 25 psi @ 85°C (185°F)
PVDF sensor housing: 200 psi @ 20°C (68°F), 25 psi @ 85°C (185°F)
Power Requirements: 3.3 to 24 Vdc <1.5 mA @ 3.3V to 6 Vdc, <20 mA @ 6V to 24 Vdc
Pipe Size Range: 0.5 to 24″
Repeatability: ±0.5% of full range
Linearity: ±1% of full range
Materials: Refer to ordering information for material options available
O-rings: FKM
Cable Type: Twisted pair, foil shield with drain wire
Cable Length: 7.6 m (25′); 300 m (1000′) max

Max Operating Pressure	180 psi, 200 psi
Wetted Materials	Titanium, PP, PVDF, FKM O-RING, Hastalloy C, PVDF, FKM O-RING
Compatible Fittings	FP-5300 Sensor Installation Fittings with additional Mounting Kit, User Must Select, FP-5300 Sensor Installation Fittings, User Must Select
Pipe Size Range	1/2 to 4", 5 to 8", 10 to 12"
Category	Meter
Velocity Range	0.3 to 20 FPS
Accuracy	±1%
Max Process Temperature	85 °C (185 °F)
Output Signal	Amplified Square Pulse
Supply Power	3.3 to 24 Vdc
Display	No Display
