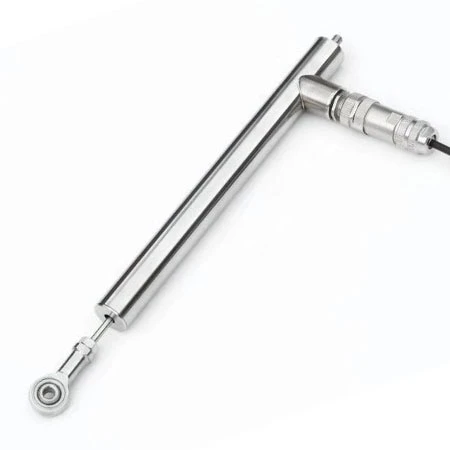

LVDT Linear Position Sensors With AC Output | NEW

Original price was: $377.00.Current price is: $96.99.

Models with 0.25% Linearity
2.5 to 200 mm Total Travel Lengths Available
Rugged Stainless Steel Body
IP67 Environmental Rating

Range

Linearity

Housing Length

Clear

SKU: LD320A-25 Categories: Control & Monitoring, Displacement Transducers, Motion and Position Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The LD320A Series of linear displacement transducers is the perfect combination of high accuracy and ruggedness to suit most general purpose applications. Not only do these products have up to 0.25% linearity, but they are also rated IP67 with a 304 stainless steel case that is hermetically sealed.

LVDT Linear Position Sensors With AC Output | NEW -Omega Engineering Sales Store LD600A descImg01

Range	A mm (in.)	B mm (in.)
-10 to 10 mm	109 (4.29)	12.5 (0.49)
-25 to 25 mm	169 (6.65)	29.5 (1.16)
-50 to 50 mm	209 (8.23)	55 (2.17)
-100 to 100 mm	291.3 (11.5)	125 (4.92)

Model	Sensitivity (mV/V/mm) @ 3Vrms, 3kHz	Output (mV)
LD320A-2.5	37	555
LD320A-5	37	1110
LD320A-7.5	13	3900
LD320A-15	18.5	832.5
LD320A-25	4	2400
LD320A-50	11	1650
LD320A-75	4	1800
LD320A-100	11	990

LVDT Linear Position Sensors With AC Output | NEW -Omega Engineering Sales Store LD320A wiring

Range	-25 to 25 mm, -100 to 100 mm, -15 to 15 mm, -2.5 to 2.5 mm, -5 to 5 mm, -50 to 50 mm, -75 to 75 mm, -7.5 to 7.5 mm
Linearity	±0.5%, ±0.25%
Housing Length	8.26", 13.43", 4.33", 11.57", 6.69"
Electrical Output	AC
IP Rating	IP67
Housing Diameter/Width	0.79"
