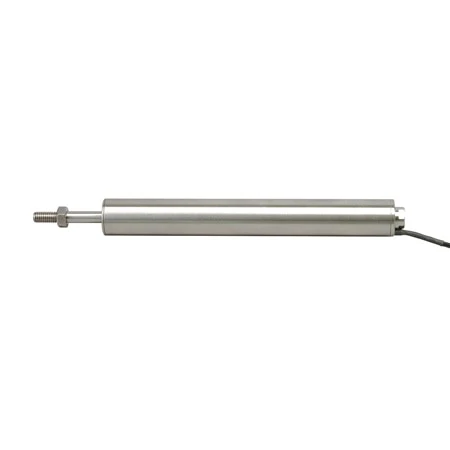

LVDT Linear Position Sensors With Current Output

Original price was: $375.00.Current price is: $96.99.

Being replaced by our new and improved LD621A-100 Series
Better Than 0.2% Linearity
5 to 300 mm Travel Lengths Available
4 to 20 mA or 20 to 4 mA Versions Available

Range

Housing Length

Clear

SKU: LD630-100 Categories: Control & Monitoring, Displacement Transducers, Motion and Position Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The LD630 series has been replaced by the new and improved LD600A series. Many ranges are in stock, available for immediate shipment.

Description

The LD630 Series current output displacement transmitters have improved IP67-rated sealing, coupled with polymer guides with rigid carriers. These transmitters are accurate and reliable, especially in wet and corrosive conditions. Typical applications include automation actuators, industrial automation controls, and proportional actuators.Output options are either direct-acting 4 to 20 mA or reverse-acting 20 to 4 mA. The direct acting models will have 4 mA output when the guided core is fully out, and the output will increase to 20 mA when fully in.

SPECIFICATIONS
Linearity: <0.2% FSO
Excitation Voltage: 10 to 30 Vdc
Output Ripple: 0.02% FSO
Bandwidth: 500 Hz (-3 dB)
Storage Temp: -20 to 85°C (-4 to 185°F)
Operating Temp: 0 to 65°C (32 to 149°F)
Vibration (Sinusoidal Frequency):
   10 to 50 Hz: 1 to 10 g rms linear Amplitude
   50 Hz to 1 kHz: 10 g rms Amplitude
Shock:
   Drop Testing: 1 m (3′) onto hard surface
   Topple Testing: 10 times each end onto hard surface
Cable: PFA, 2 m (6′) long
Core Material: Nickel-Iron

Range	0 to 100 mm, 0 to 10 mm, 0 to 15 mm, 0 to 150 mm, 0 to 20 mm, 0 to 200 mm, 0 to 30 mm, 0 to 300 mm, 0 to 5 mm, 0 to 50 mm
Housing Length	9.0", 4.5", 4.8", 11.0", 5.3", 13.2", 5.9", 17.8", 3.7", 6.7"
Linearity	±0.2%
Electrical Output	4 to 20 mA
Rating	IP67
Housing Diameter/Width	0.75"
