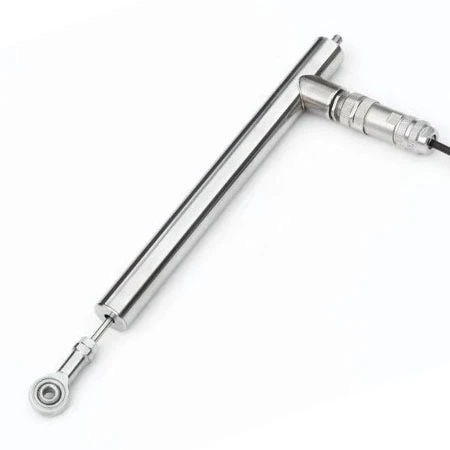

LVDT Linear Position Sensors With DC And Current | NEW

Original price was: $334.00.Current price is: $98.99.

Models with 0.25% Linearity
10 to 200 mm Total Travel Lengths Available
Rugged Stainless Steel Body
IP67 Environmental Rating

Range

Linearity

Electrical Output

Housing Length

Clear

SKU: LD630A-50 Categories: Control & Monitoring, Displacement Transducers, Motion and Position Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The LD600A Series of linear displacement transducers is the perfect combination of high accuracy and ruggedness to suit most general purpose applications. Not only do these products have up to 0.25% linearity, but they are also rated IP67 with a 304 stainless steel case that is hermetically sealed.There are two output options available – a DC voltage output (LD621A) and a 4 to 20 mA output (LD630A).

LVDT Linear Position Sensors With DC And Current | NEW -Omega Engineering Sales Store LD600A descImg01

Range	A Dimension mm (in.)	B Dimension mm (in.)
0 to 10 mm	109 (4.29)	12.5 (0.49)
0 to 25 mm	169 (6.65)	29.5 (1.16)
0 to 50 mm	209 (8.23)	55 (2.17)
0 to 100 mm	291.3 (11.5)	125 (4.92)
0 to 200 mm	340 (13.38)	250 (9.84)

LVDT Linear Position Sensors With DC And Current | NEW -Omega Engineering Sales Store LD320A descImg 2a

LVDT Linear Position Sensors With DC And Current | NEW -Omega Engineering Sales Store LD600A descImg03

Range	0 to 50 mm, 0 to 10 mm, 0 to 100 mm, 0 to 20 mm
Linearity	±0.5%, ±0.25%
Electrical Output	4 to 20 mA, 0 to 10 Vdc
Housing Length	8.26", 4.33", 11.57", 6.69", 6.77"
IP Rating	IP67
Housing Diameter/Width	0.79"
