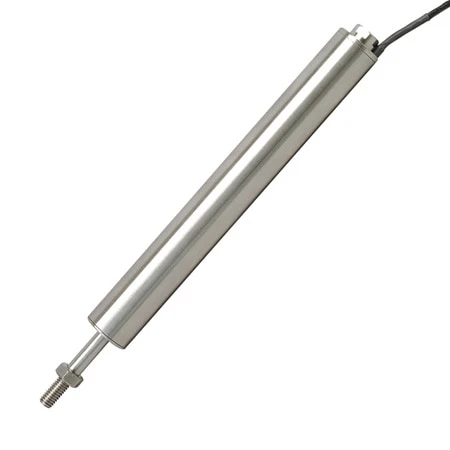

LVDT Linear Position Sensors With DC Output

Original price was: $348.00.Current price is: $97.99.

Being replaced by the new LD600A series
Better Than 0.2% Linearity
5 to 150 mm Total Travel Lengths Available
Rugged 19 mm Dia. Stainless Steel Body

Range

Electrical Output

Housing Length

Clear

SKU: LD621-150 Categories: Control & Monitoring, Displacement Transducers, Motion and Position Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The LD620 series has been replaced by the new and improved LD600A series. Many ranges are in stock, available for immediate shipment. Link “LD600A Series” in redirected to the LD600A page LD621A-100

The LD620 DC output displacement tranducers have improved IP67- rated sealing, coupled with new polymer guides with rigid carriers. These transducers are accurate and reliable, especially in wet and corrosive conditions. Output options are either ±5 Vdc (LD620) or 0-10 Vdc (LD621). An unusually large bore-to-core clearance is maintained throughout the range. This makes installation easier and helps prevent misalignment on automation actuators and other industrial automation controls.

SPECIFICATIONS
Linearity: <0.2% FSO
Excitation Voltage: 10 to 30 Vdc @ 25 mA maximum
Output Ripple: 0.02% FSO
Bandwidth: 500 Hz (-3 dB)
Storage Temp: -20 to 85°C (-4 to 185°F)
Operating Temp: 0 to 65°C (32 to 149°F)
Sealing: IP67
Vibration (Sinusoidal Frequency):
10 to 50 Hz: 1 to 10 g rms linear Amplitude
50 Hz to 1 kHz: 10 g rms Amplitude
Shock:
Drop Testing: 1 m (3′) onto hard surface
Topple Testing: 10 times each end onto hard surface
Case Material: 300 SS
Cable: PFA, 2 m (6′) long
Core Material: Nickel-iron

Range	0 to 150 mm, -10 to 10 mm, -100 to 100 mm, -15 to 15 mm, -150 to 150 mm, -25 to 25 mm, -2.5 to 2.5 mm, -5 to 5 mm, -50 to 50 mm, -75 to 75 mm, -7.5 to 7.5 mm, 0 to 10 mm, 0 to 100 mm, 0 to 15 mm, 0 to 20 mm, 0 to 200 mm, 0 to 30 mm, 0 to 300 mm, 0 to 5 mm, 0 to 50 mm
Electrical Output	0 to 10 Vdc, -5 to 5 Vdc
Housing Length	11.0", 5.3", 13.2", 5.9", 17.8", 6.7", 3.7", 4.5", 9.0", 4.8"
Linearity	±0.2%
Rating	IP67
Housing Diameter/Width	0.75"
Features	Wet and Corrsoive Enviornment
