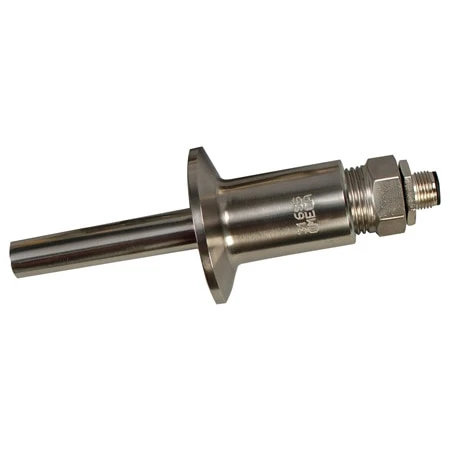

M12 Removable Connector RTD Probes & Thermowells Sanitary

Original price was: $358.06.Current price is: $99.99.

Sensor Includes a 4-Wire M12 Connector Plug for Attachment to Process Instrumentation. An M12 Extension Cable is Required for Installation.
Clean-In-Place Design for Use in Food, Dairy and Pharmaceutical Processes
Standard Mounting Cap is a 1½’ 16AMP Tri-Grip^TM (Tri-Clamp^® Compatible) Design, Other Cap Sizes and Styles are Available
Removable Probe Assembly is Spring Loaded Into the Thermowell for Good Thermal Response

Probe Diameter

Probe Length

Clear

SKU: PRS-3-100-A-TW-0250-D1-M12 Categories: Sanitary Probes, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Note: These Sensors Require an M12 Extension Cable to Connect the Sensor To Your Instrumentation. A Partial List Of Our M12 Extension Cables is Included in the Ordering Table Below.

This Pt100 RTD sensor is designed for use in sanitary or Clean-In-Place (CIP) applications where the use of a thermowell assembly is preferred over direct immersion sensors. The thermowell includes a 1½”, 16AMP cap feature for easy installation using industry standard gaskets and clamps. The spring loaded RTD probe can be removed from the thermowell without exposing the system to ambient conditions for calibration or replacement. This sensor includes a 4-Pin, M12 Connector for easy installation using an extension cable.

Sensor Specifications Include:

316L stainless steel process wetted surfaces with surface finishes of 32 microinches or better.

Immersion lengths of 1⁵⁄8, 2½”, 4½”, 7½, and 10½” are available from stock, with others available.

Sensor Output is a 4-wire, 100 ohm, Class A, Platinum RTD meeting the requirements of IEC 60751.

These sensors can be used with 2-wire or 3-wire systems see information below.

Insulation resistance values of 100 megohms minimum at 100 VDC.

These sensors are supplied standard as 4-wire assemblies with 4-pin connectors.
When used in 3-wire applications, use pins A, B and C as shown in the wiring detail below.
When used in 2-wire systems, connect one wire to pins A or B, and the other wire to pins C or D as shown below.

Wiring Diagram

M12 Removable Connector RTD Probes & Thermowells Sanitary -Omega Engineering Sales Store s 12wiring dia

Probe Diameter	0.5 in, 0.75 in to 0.50 in reduced tip
Probe Length	2.50 in, 1.625 in, 4.50 in, 7.5 in, 10.50 in
Category	RTD
Process Temperature Range	-50 to 200°C (-58 to 392°F)
Sensor Application	Thermowell and Probe Combo
Process Connection Type	1.5" Tri-Clamp
Accuracy	Class A per IEC60751
Nominal Output	100 Ω
Number of Wires	4
Sheath Material	316 Stainless Steel
Termination Connection Type	M12 Connector
