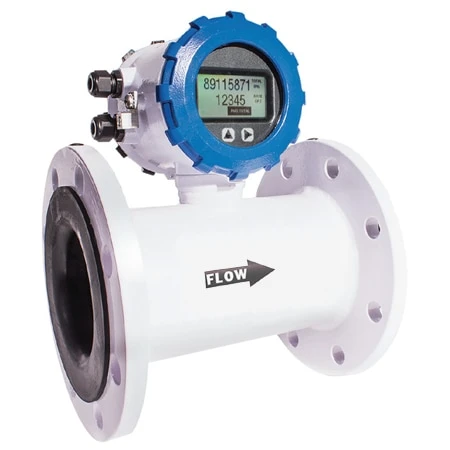

Magmeter With Integrated Display, Pulse & 4-20mA Output

Original price was: $334.00.Current price is: $96.99.

Easy setup
Minimal straight pipe
Mounted or remote rate & total
Tamper-evident seal

Flow Range

Wetted Materials

Supply Power

Process Connection Size

Clear

SKU: FMG480-04-D6 Categories: Electromagnetic Flow Meters, Flow Instruments, Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The FMG480 Series is the most economical flanged electromagnetic flowmeter on the market. With electrodes designed to discourage fouling, it is available in 3” to 12” pipe in municipal or industrial water, waste and reclaimed water, pump stations, and packaged plant applications.

Minimal straight pipe requirements allow iMAG-Series meters to be used in piping configurations where there is little space between the meter and an elbow.

FMG480 Series meters are CE certified, certified to NSF/ANSI standard 61 and are rated IP68 for applications where the meter may be operated under water to a depth of at least 10 feet (3 meters) continuously.

Both rate and total indication are standard. Rate and total units and pulse scaling can be set via the front panel touch key pad by the user. Bidirectional flow reading is standard with totals available in forward, reverse, net flow, batch forward flow, and batch reverse flow. Batch totals can be

Flow Rate(3″-12″)

Pipe Size (inches in diameter)	3″	4″	6″	8″	10″	12″
Max Flow Rate (Gallons/Minute)	723	1285	2891	5140	8031	11565
Cut-off (min) Flow Rate (Gallons/Minute)	3.62	6.43	14.46	25.70	40.15	57.82
Max Flow Rate (Litres/Second)	46	81	182	324	507	730
Cut-off (min) Flow Rate (Litres/Second)	0.23	0.41	0.91	1.62	2.54	3.65
Max Flow Velocity (Meters/Second)	10	10	10	10	10	10

Flow Range	1285 GPM (81 LPS), 723 GPM (46 LPS), 2891 GPM (182 LPS), 5140 GPM (324 LPS), 8031 GPM (507 LPS), 11565 GPM (730 LPS)
Wetted Materials	316 SS, Polypropylene, EPDM, 316 SS, Noryl, EPDM
Supply Power	9 to 36 Vdc / 60 Hz, 85 to 264 Vac, 50/60 Hz, 9 to 36 Vdc / 50 Hz
Process Connection Size	4", 3", 6", 8", 10", 12"
Category	Meter
Velocity Range	10 MPS
Accuracy	±0.75%
Max Operating Pressure	150 psi
Max Process Temperature	60C (140F)
Media Type	Conductive Fluids
Output Signal	Current sinking pulse, 4 to 20 mA
Display	LCD
Process Connection Type	ANSI Flange
Features	Must Select 8 Conductor Output Cable From Accessories
