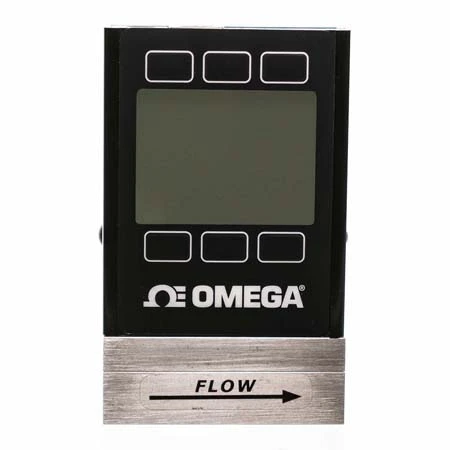

Mass And Volumetric Flow Meters
Original price was: $361.00.$96.99Current price is: $96.99.
- Ranges of 0 to 0.5 SCCM Up to 0 to 3000 SLM
- < 10ms Response Time—Field Adjustable
- 130+ Gas Calibrations with Every Unit: Air, Ar, CH4, CO, CO2, Ethane, H2, He, N2, N2O, Neon, O2, Propane, Butane, Acetylene, Ethylene and more
- Pressure, Temperature, and Volumetic and Mass Flow Simultaneously Displayed
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
The FMA-1600A Series mass and volumetric Omega’s flow meters use the principle of differential pressure within a laminar flow field to determine the mass flow rate. A laminar flow element (LFD) insdie the meter forces the gas into laminar (streamlined) flow. Inside this region, the Poiseuille equation dictates that the volumetric flow rate be linearly related to the pressure drop along a fixed distance of the LFE. This, along with the viscosity of the gas, is used to accurately determine the volumetri flow rate. Separate absolute temperature and pressure sensors are incorporated and correct the volumetric flow rate to a set of standard conditions. This standardized flow rate is commonly called the mass flow rate and is reported in units such as standard cubic feet per minute (SCFM) or standard liters per minute (SLM).
Standard units include a 0 to 5 V output (4 to 20 mA optional) and RS232 communications. The gas select feature can be adjusted from the front of the keypad or via RS232 communications. Volumetric flow, mass flow, or absolute pressure, and temperature can be viewed or recorded through the RS232 connection. It is also possible to multi-drop up to 26 units on the same serial connection to a distance of 125′. These flowmeters are also available in a portable version for use in the field (-B models).
SPECIFICATIONS
Accuracy: ±(0.8% of rdg + 0.2% FS)
Repeatability: ±0.2%
Turndown Ratio: 200:1
Response Time: 10 ms typical default response time for 63.2% of a step change. A variable register allows response time to be field adjustable to a certain extent via RS232 communications. The primary trade-off for response time is signal noise
Output: 0 to 5 Vdc standard
Operating Temperature: -10 to 50°C (14 to 122°F)
Zero Shift: 0.02% FS/°C/atm
Span Shift: 0.02% FS/°C/atm
Humidity Range: 0 to 100% non-condensing
Pressure (Max):
   FMA-1600A Series: 145 psig
   FMA-1600A Series: 50 psi differential
   FVL-1600A Series: 10 psig
   FVL-1600A Series: 10 psi differential
Measurable Flow Rate: 125% FS
Supply Voltage: 7 to 30 Vdc (15 to 30 Vdc for 4 to 20 mA output)
Supply Current: 35 mA typical current draw; 100 mA available supply recommended
Cable Connection: 8-pin mini DIN
Wetted Parts: 303 & 302 Stainless Steel, FKM Heat Cured Silicone Rubber, Glass Reinforced Polyphenylene Sulfide, Heat Cured Epoxy, Aluminum, Gold, Silicon, Glass. Contact Omega engineering for details.
-LSS (Option):316LSS, 303SS, 430FRSS, Perfluoroelastomer standard, FKM, EPDM, Buna, Neoprene Standard Pressure Drops (venting to atmosphere):
| Max Flow Rate | 0.5 to 50 SCCM | 0.1 to 10 SLM | 20 SLM | 50 SLM | 100 SLM | 250 SLM | 500 SLM | 1000 SLM | 1500 SLM |
| PSID | 1 | 1 | 1 | 2 | 2.5 | 4.0 | 5.5 | 6.0 | 9.0 |
| Flow Range | 0.05 to 10 SLM, 0.0025 to 0.5 SCCM, 0 to 0.5 SCCM, 0.005 to 1 SCCM, 0 to 1 SCCM, 0.05 to 10 SCCM, 0 to 10 SCCM, 0.25 to 50 SCCM, 0 to 50 SCCM, 0.01 to 2 SLM, 0 to 2 SLM, 0.025 to 5 SLM, 0 to 5 SLM, 0 to 10 SLM, 0.1 to 20 SLM, 0 to 20 SLM, 0.25 to 50 SLM, 0 to 50 SLM, 0.5 to 100 SLM, 0 to 100 SLM, 1.25 to 250 SLM, 0 to 250 SLM, 2.5 to 500 SLM, 0 to 500 SLM, 5 to 1,000 SLM, 0 to 1,000 SLM, 0.01 to 2 SCCM, 0 to 2 SCCM, 0.025 to 5 SCCM, 0 to 5 SCCM, 0.1 to 20 SCCM, 0 to 20 SCCM, 0.5 to 100 SCCM, 0 to 100 SCCM, 1 to 200 SCCM, 0 to 200 SCCM, 2.5 to 500 SCCM, 0 to 500 SCCM, 0.005 to 1 SLM, 0 to 1 SLM, 7.5 to 1,500 SLM, 0 to 1,500 SLM, 10 to 2,000 SLM, 0 to 2,000 SLM, 15 to 3,000 SLM, 0 to 3,000 SLM |
|---|---|
| Accuracy | ±0.8%, ± 0.8% |
| Output Signal | 0 to 5 Vdc, 4 to 20 mA, Dual 4 to 20 mA, Dual 0 to 5 Vdc, 4 to 20 mA with Volumetric flow rate as standard output |
| Wetted Materials | 300 SS, Aluminum, Silicone, FKM, 300 series SS, Silicone, Aluminum, FKM |
| Max Operating Pressure | 145 psi, 10 psi |
| Process Connection Type | NPT Female, UNF Female |
| Process Connection Size | 1/8", 10-32, 1/4", 1/2", 3/4", 1 1/4" |
| Features | Power Supply Included, Battery Powered Portable version, N/A, Alternate output scale for Pressure, Alternate output scale for Pressure, Power Supply Included, Alternate output scale for Temperature, Power Supply Included, Bad part number, Alternate output scale for Temperature, Portable version, Alternate output scale for Temperature |
| Category | Meter |
| Media Type | Gas |
| Communications Protocol | RS232 |
| Display | LCD |
| Max Process Temperature | 50 °C (122 °F) |
