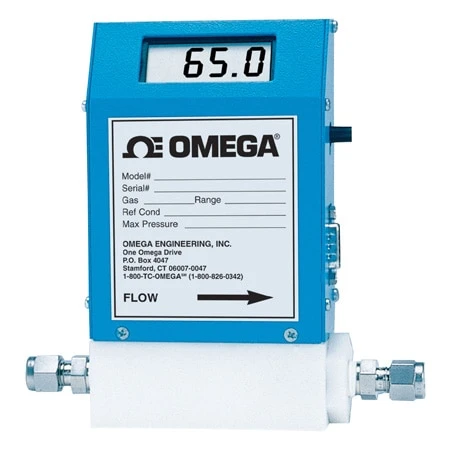

Mass Controllers With Or Without Integral Display

Original price was: $396.00.Current price is: $95.99.

±1% Accuracy
Linear Output
Low Cost
Thermal Technology

Category

Media Type

Flow Range

Wetted Materials

Display

Max Operating Pressure

Process Connection Type

Features

Clear

SKU: FMA-A2305 Categories: Flow Instruments, Flow Meters, Mass Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The FMA-A2100/2200/2300/2400 Series Electronic Mass Flowmeters/ Controllers provide high performance, versatility and state-of-the-art design in one compact package. The FMA-A2100/ 2200/2300/2400 uses capillary-type thermal technology to directly measure mass flow of gases. No temperature, pressure, or square root corrections are required. The FMA-A2300/2400 Series comes with an LCD display, and all models come with linear 0-5 and 4-20 mA output.

The FMA-A2100/2200/2300/2400 measures the mass flowrate of gases in 24 ranges from 0-10 SCCM to 0-100 SLM. For the complete listing, refer to the range table below. The FMA-A2100/2200/ 2300/2400 Series is compatible with most noncorrosive gases. The user is advised to check the wetted materials against gas compatibility.

OMEGA’s Mass Flow Controllers use an internal electromagnetic proportional valve to control the mass flowrate. A command signal can be supplied either by the internal setpoint pot or by a 0-5 Vdc external source.

SPECIFICATIONS
Accuracy: ±1% of full scale including linearity
Repeatability: ±0.15% full scale or better
Turndown Ratio: 100:1
Response Time: 5 seconds
Gas Ambient Temperature: 0 to 50°C (32 to 122°F)
Temperature Coefficient: 0.05% full scale per 1°C or better
Pressure Coefficient: 0.01% full scale per psi or better
Minimum Pressure Requirements:
   Meters: 1 inch of H₂O
   Controllers ≤1 SLM: 1 psi
   Controllers >20 SLM: 20 psi
Differential Pressure for Mass Flow Controllers:
   <5 LPM: 5 to 50 psi standard
   >5 LPM: 20 to 40 psi standard
Maximum Gas Pressure:
   Polyacetal: 250 psig
   316 SS: 500 psig
Leak Integrity: 1 x10^-6 cc/min of He or better
Wetted Parts:
   Standard: Polyacetal, FKM O-rings
   Optional: 316 SS, FKM O-rings
Connections: 1/4 FNPT standard; 1/4′ compression fitting for all stainless steel models
Input/Output Connection: 9-pin sub-D connector
Control Signal: 0 to 5 Vdc
Control Valve: Electromagnetic normally closed
Output signal: Linear 0 to 5 Vdc, 1000 Ω min load, 4 to 20 mA, 500 Ω loop resistance
Input Power:
   Meters: 24 Vdc @ 150 mA, 115 Vac, 220 Vac with AC adaptor
   Controller: 24 Vdc @ 300 mA, 115 Vac, 220 Vac with AC adaptor
Dimensions: See drawing
Weight: 1.25 kg (2.75 lb) with power supply

Range Table

Code	SCCM	Code	SLM	Code	SLM
00	0-10	06	0-1	14	0-35
01	0-20	07	0-2	15	0-40
02	0-50	08	0-5	16	0-45
03	0-100	09	0-10	17	0-50
04	0-200	10	0-15	18	0-55*
05	0-500	11	0-20	19	0-60*
		12	0-25	20	0-65*
		13	0-30	21	0-70*
				22	0-75*
				23	0-100*

*Only for FMA-A2100/2300 Series

*Insert range code from table at top of page to complete model number.
**Specify gas and inlet/outlet Pressure

FMA-A2200-SS-(**) and FMA-A2400-SS-(**) controllers have a stainless steel body (with 1/4′ compression fittings)standard.

Category	Meter, Controller
Media Type	Gas, GAS
Flow Range	5 to 500 SCCM, 0.1 to 10 SCCM, 0.2 to 20 SCCM, 0.5 to 50 SCCM, 1 to 100 SCCM, 2 to 200 SCCM, 0.01 to 1 SLM, 0.02 to 2 SLM, 0.05 to 5 SLM, 0.1 to 10 SLM, 0.15 to 15 SLM, 0.2 to 20 SLM, 0.25 to 25 SLM, 0.3 to 30 SLM, 0.35 to 35 SLM, 0.4 to 40 SLM, 0.45 to 45 SLM, 0.5 to 50 SLM, 0.55 to 55 SLM, 0.6 to 60 SLM, 0.65 to 65 SLM, 0.7 to 70 SLM, 0.75 to 75 SLM, 1 to 100 SLM
Wetted Materials	17-4 SS, Acetal, FKM, 316 SS, 17-4 SS, FKM
Display	LCD, No Display
Max Operating Pressure	250 psi, 500 psi
Process Connection Type	NPT Female, Compression fitting
Features	Power Supply Included, 0 to 10 SCCM, Standard
Accuracy	±1%
Output Signal	0 to 5 Vdc, 4 to 20 mA
Max Process Temperature	50 °C (122 °F)
Process Connection Size	1/4"
