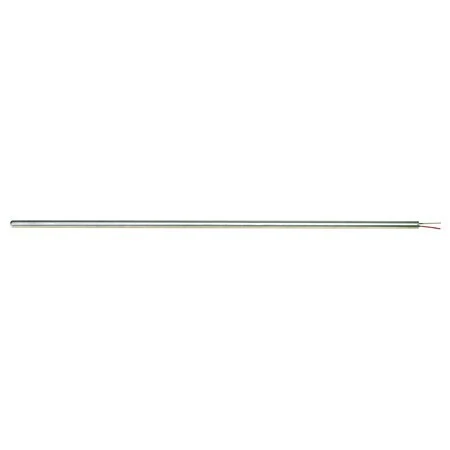

Mineral Insulated Metal Sheath Thermocouple Probes With Bare Leads
Original price was: $88.91.$62.24Current price is: $62.24.
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
BLMI Replacement Thermocouple Probes Deliver Consistent, Superior Quality Through Automated Manufacturing
Bare lead mineral insulated BLMI replacement TC probes begin with OMEGA’s own high-purity magnesium oxide SLE grade thermocouple cable. BLMI TC sensors are built and quality tested on our automated manufacturing cells.
OMEGACLAD™ mineral insulated MI thermocouple material is metal sheathed thermocouple cable that is cut, stripped, beaded, closed, potted, and tested by equipment designed and built in-house exclusively for these tasks. Replacement TC probes are available in 6 inch (150 mm), 12 inch (300 mm), and 18 inch (450 mm) lengths. The cold end bare leads are 1.0 in. (25 mm) in length.The hot end junction can be selected as grounded, ungrounded or exposed. Contact sales for custom lengths or diameters. Connectors, accessories and other related options are listed below.
OEM quantity thermocouple sensor components can be shipped bulk as coiled or straight cut to length CTL with cold end stripped leads and hot junctions to match your tc probe specifications.
High Temperature Option
BLMI probes are also available in a high-temperature version. The cold end is potted using a ceramic cement rated to 1200°C (2200°F). Add “-CC” to the end of the probe part number and $5 to list price. (The actual temperature rating of the probe is dependent upon the calibration, sheath material, and probe diameter.)
“DUAL”Construction Option
Also available in a 4-wire construction (2 thermocouple junctions). Add “–DUAL” to the end of the part number and consult sales for pricing.
View the Thermocouple Accuracy and Color Code charts
| Thermocouple Type | K, E, J, T, N |
|---|---|
| Process Temperature Max | 1150, 510, 820, 440, 720, 520, 620, 920, 1070, 260, 370, 315, 700, 800, 1038, 1204 |
| Process Temperature Range | 0 to 1150°C (32 to 2100°F), 0 to 510°C (32 to 950°F), 0 to 820°C (32 to 1510°F), 0 to 440°C (32 to 825°F), 0 to 720°C (32 to 1300°F), 0 to 520°C (32 to 970°F), 0 to 620°C (32 to 1150°F), 0 to 920°C (32 to 1690°F), 0 to 1070°C (32 to 1960°F), 0 to 260°C (32 to 500°F), 0 to 370°C (32 to 700°F), 0 to 315°C (32 to 600°F), 0 to 700°C (32 to 1290°F), 0 to 800°C (32 to 1472°F), 0 to 1038°C (32 to 1900°F), 0 to 1204°C (32 to 2200°F) |
| Sheath Material | 304 Stainless Steel, 316 Stainless Steel, Inconel® 600, Super OMEGACLADâ„¢ XL |
| Junction Type | Exposed, Ungrounded, Grounded |
| Probe Diameter | 0.250 in, 0.062 in, 0.125 in, 0.187 in, 3.00 mm, 0.050 mm, 0.020 in, 0.032 in, 1.50 mm, 1/16 in, 0.50 mm, 1.00 mm |
| Probe Length | 12 in, 24 in, 6 in, 18 in, 3 in, 36 in, 60 in, 8 in, 4 in, 48 in, 72 in, 120 in, 150 mm, 300 mm, 80 mm, 2 in, 5 in, 100 mm, 1200 mm, 600 mm |
| Cable Length | 0.70 in, 19 mm |
| Termination Connection Type | Bare wire Dual Sensor, Bare wire |
| Additional Feature | none, High temperature ceramic seal, None, Immersion Probe, With Weld Pad |
| Category | Thermocouple |
| Process Temperature Unit | °C |
| Process Temperature Min | 0 |
| Sensor Application | Immersion Probe |
