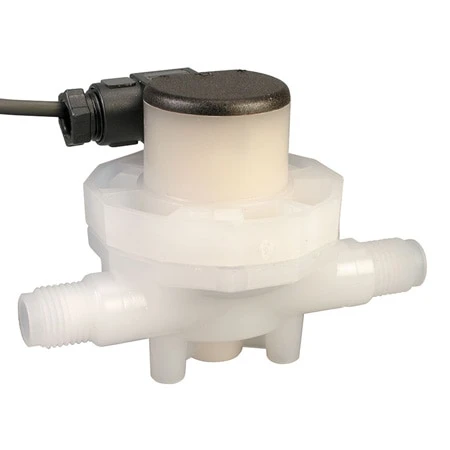

Mini PVDF Flow Sensor
Original price was: $308.00.$95.99Current price is: $95.99.
- High Resolution Design
- Accurate Low Flow Measurements to 500 ml/min
- Easily interfaced, Open Collector Output
- Wide Temperature Range -30 to 120°C (-22 to 248°F)
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
The OMEGAâ„¢ FP-5070 Mini-Flow sensor is ideal for precision low flow. The FP-5070 is available in four flow range configurations, covering a very wide range of flows. This allows for easy selection of the range that best fits your application. Typical applications include pilot plant installations, monitoring of critical flows in laboratories, fluid dispensing, bottling lines, and medical flow applications. Other successful applications include monitoring liquid ingredient additions, such as food dyes, in the food processing industry. The FP-5070 is compatible with the FPM-5500, FPM-9010A, DPF701 and DPF5300
| Flow Range | 0.343 to 1.585 GPM, 0.15 to 0.74 GPM, 0.845 to 3.17 GPM |
|---|---|
| Category | Meter |
| Accuracy | ±2% |
| Max Process Temperature | 120 °C (248 °F) |
| Max Operating Pressure | 45 psi |
| Wetted Materials | PVDF, PTFE, FKM O-RING |
| Output Signal | Amplified Square Pulse |
| Supply Power | 5 to 24 Vdc |
| Process Connection Type | NPT Female |
| Process Connection Size | 1/4" |
| Display | No Display |
