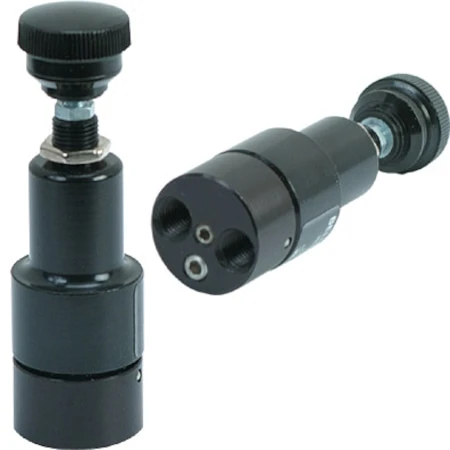

Miniature Pressure Regulators For Corrosive Media

Original price was: $59.50.Current price is: $41.65.

Designed for Applications with Limited Space and for Low Flow or Dead-End Service
Small Package Size and Lightweight Construction
Corrosion Resistant Anodized Aluminum Exterior
Excellent Stability and Repeatability

Pressure Range

Pressure Port Size

Pressure Port Type

Clear

SKU: AR91-005 Categories: Control & Monitoring, Controllers, Pressure Regulators Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The AR90 Series miniature pressure regulator is a compact, low cost unit which operates in pressure ranges up to 100 psi, with a maximum supply pressure of 250 psi. It provides reliability and accuracy for low flow and dead end applications, but is not designed for critical flow applications. The unit is designed with a corrosion resistant anodized aluminum body with a standard fluorocarbon diaphragm.

SPECIFICATIONS
Supply Pressure Effect: <0.25 psig (17.02 mbar)
Exhaust Capacity (@5 psi > Setpoint): 0.1 to 0.3 SCFM (2.8 to 8.5 LPM) typical
Max. Supply Pressure: 250 psig (17.2 bar)
Flow Capacity: 2.5 SCFM (71 LPM) typical
Total Air Consumption:3 SCFH (84.6 LPM) typical
Port Size: 1/16-27 NPT or 5 mm metric thread
Materials of Construction:
  Body: Anodized Aluminum
  Adjusting Screw: Plated Steel
  Trim: Brass, Acetal
  Diaphragm: Fluorocarbon with Polyester Fabric
  Knob: Acetal Resin
  Spring: Music Wire
Dimensions: 22.2 x 22.2 x 84.6 mm (0.875 x 0.875 x 3.33′)
Weight: 0.06 kg (2.2 oz)
Mounting Options: Pipe or Panel

Pressure Range	0 to 5 psig, 0 to 15 psig, 0 to 30 psig, 0 to 60 psig, 0 to 100 psig
Pressure Port Size	1/16", 5 mm
Pressure Port Type	NPT Female, Metric Female
Maximum Inlet Pressure	250 psig
Media Type	Corrosive
Features	Miniature Pressure Regulators
