MMA-Series
Original price was: $47.50.$33.25Current price is: $33.25.
- Low installation costs with easy mounting
- Long operation life with durable construction
- Precision molding enables high repeatability
- White back on the flow tube allows for better visibility of the float increasing reading accuracy
- Side printed scale graduations allows for instantaneous flow reading saving time
- Compact bodies require minimal panel space freeing valuable space
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
Dwyer Instruments is now a DwyerOmega product brand.
Overview

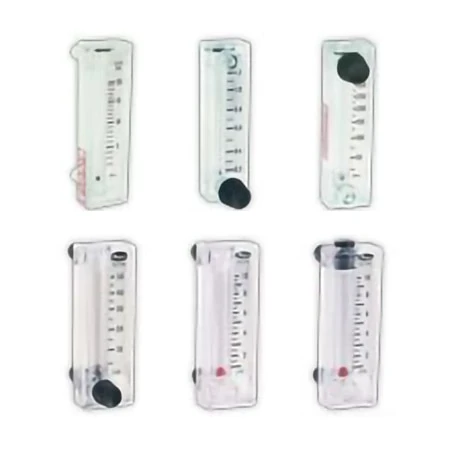

The Series mm Mini-Master Flowmeters consist of two series of flowmeters suitable for both gas and liquid applications with advanced features at a low cost. The Series MMA is a 2″ (51 mm) scale flowmeter that is user configurable with or without non-removable top or bottom front mounted metering valves. It is constructed form transparent nylon materials providing high chemical resistance and is easily disassembled via the provided key for cleaning or reconfiguration. The Series MMF is a 1-1/2″ (38 mm) scale compact flowmeter ideal for measuring small volume air it features bezel type mounting that can be quickly installed from the front of the instrument panel.
Product Applications
-Medical equipment
-Air samplers
-Gas analyzers
-Pollution monitors
-Chemical injectors
-Cabinet purging
| Max Operating Pressure | 108 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 109 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 110 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 111 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 112 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 113 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 114 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 115 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 116 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 117 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 100 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 118 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 119 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 120 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 121 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 122 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 123 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 124 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 125 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 101 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 126 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 127 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 128 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 102 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 103 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 104 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 105 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 106 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, 107 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp |
|---|---|
| Gas Flow Range | 30-300 SCFH AIR, 0.1-0.5 LPM AIR, 0.2-1.2 LPM AIR, 0.25-2.5 LPM AIR, 0.5-5 LPM AIR, 1-10 LPM AIR, 2.5-25 LPM AIR, 5-50 LPM AIR, 10-100 LPM AIR, 15-150 LPM AIR, 0.2-1.2 SCFH AIR, None, 0.5-2.5 SCFH AIR, 0.5-5 SCFH AIR, 1-10 SCFH AIR, 2-20 SCFH AIR, 5-50 SCFH AIR, 10-100 SCFH AIR, 20-200 SCFH AIR |
| Liquid Flow Range | None, 1-8 GPH WATER, 1-16 GPH WATER, 4-40 GPH WATER, 5-60 GPH WATER, 5-50 CC/MIN WATER, 10-150 CC/MIN WATER, 20-200 CC/MIN WATER, 5-500 CC/MIN WATER, 0.1-1.1 LPM WATER, 0.25-2.5 LPM WATER, 0.3-3.5 LPM WATER |
| Scale | 0.25-2.5 LPM AIR, 0.5-5 LPM AIR, 1-10 LPM AIR, 2.5-25 LPM AIR, 5-50 LPM AIR, 10-100 LPM AIR, 15-150 LPM AIR, 1-8 GPH WATER, 1-16 GPH WATER, 4-40 GPH WATER, 1-10 SCFH AIR, 5-60 GPH WATER, 5-50 CC/MIN WATER, 10-150 CC/MIN, 20-200 CC/MIN WATER, 5-500 CC/MIN WATER, 0.1-1.1 LPM WATER, 0.25-2.5 LPM WATER, 0.3-3.5 LPM WATER, 2-20 SCFH AIR, 5-50 SCFH AIR, 10-100 SCFH AIR, 20-200 SCFH AIR, 30-300 SCFH AIR, 0.1-0.5 LPM AIR, 0.2-1.2 LPM AIR |
| Media Type | Compatible gases and liquids |
| Accuracy | ±4% FS |
| Max Process Temperature | 130°F (54°C) |
| Process Connection Type | male NPT |
| Process Connection Size | 5/16" |
| Wetted Materials | Body Nylon 12 O-rings Buna-N (optional materials available) Float Black glass, K monel, stainless steel, tungsten carbide |
| Valve Included | No |
| Scale Length | 3" (76.2 mm) |
