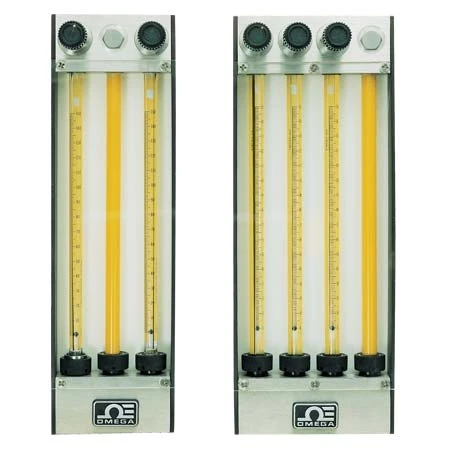

Multi-tube And Gas Proportioning Variable Area Flow Meters
Original price was: $323.00.$99.99Current price is: $99.99.
- ±2%FS Accuracy
- Back Pressure Compensated for Accurate Blending
- Blend Up To Three Gases
- Save on Cost of Custom Gas Mixtures
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
To blend two or three gases in homogeneous infinitely variable concentrations, directly at the end use point, these rotameters are unsurpassed in convenience and economy. Gas proportioning rotameters pay for themselves in a short period of time since their use eliminates the need for expensive custom blended gas mixtures from outside sources. this series of rotameters lend flexibility and economy to the efficient utilization of component gas cylinders and piped in supply lines. Another significant advantage in laboratory use is the freedom to reproducibly increase or decrease concentrations during the course of an experiment.
The flowrates of component gases are not affected by downstream pressure variations as long as back pressures do not exceed or approach the input pressure.
| 150 mm Flowtube, Gas Flow Capacities of Routine Gases Ranges in cc/min, flowtubes have 10:1 range | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*Specify flow tube and float from flowtube table at right. Float Materials: SPECIFICATIONS |
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wetted Materials | Aluminium, Buna, Glass, 316 SS, Glass, FKM |
|---|---|
| Features | Max Air Flow 513 ml/min, 264 ml/min, Max Air Flow 814 ml/min, 264 ml/min, Max Air Flow 1,682 ml/min, 1,682 ml/min, Max Air Flow 3,079 ml/min, 374 ml/min, Max Air Flow 49 ml/min, 49 ml/min, Max Air Flow 1,331 ml/min, 2,423 ml/min, Max Air Flow 1,331 ml/min, 60.6 ml/min, Max Air Flow 3,922 ml/min, 3,922ml/min, Max Air Flow 23,742 ml/min, 23,742 ml/min, Max Air flow 45,227 ml/min, 6,621 ml/min, Max Air Flow 444 ml/min, 444 ml/min, Max Air Flow 93 ml/min, 8,678 ml/min, Max Air Flow 844 ml/min, 513 ml/min, Two 3,903 cc/min (air) tubes, Max Air flow 444 ml/min, 444 ml/min, 444 ml/min, Max Air Flow 513 ml/min, 513 ml/min, 513 ml/min, NIST Calibration |
| Category | Meter |
| Media Type | Air, Water |
| Gas Flow Range | Refer to Product Specs |
| Liquid Flow Range | Refer to Product Specs |
| Accuracy | ±2% |
| Process Connection Type | NPT Female |
| Process Connection Size | 1/8" |
| Max Operating Pressure | 200 psi |
| Max Process Temperature | 121 °C (250 °F) |
| Scale | 0 to 150 |
| Valve Included | Yes |
