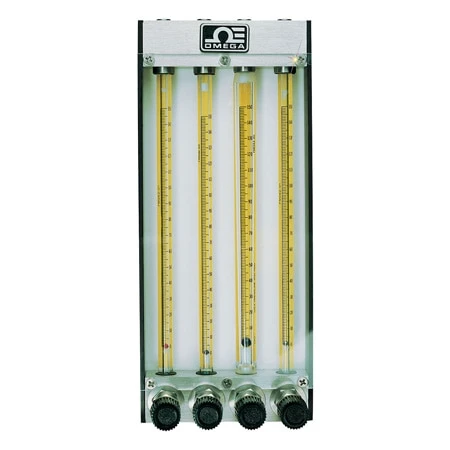

Multiple Tube Variable Area Flow Meters
Original price was: $375.00.$96.99Current price is: $96.99.
- Interchangeable 150 mm Flow Tubes
- Variety of Flow Configurations
- ±2% FS Accuracy
- Scales Designed to Minimize Parallax and Eye Fatigue
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
OMEGA’s multi-tube Variable Area Flow Meters are convenient for applications where up to four streams of liquids or gases are to be metered in individual channels. Two frame flow patterns are available, with either individual channel measurement (frame A) or multiple inlets manifolded into one outlet (frame B). Frame B type units can also be inverted in the field, so that a single inlet can be split off into multiple outlets. Precision metering valves with 16 turn non-rising stems are also available (consult Sales). The FL-2AA series Variable Area Flow Meters utilize the interchangeable FLT Series series 150 mm flow tubes, which provides for maximum flexibility, with 9 different sizes and 5 different floats available; there are 43 possible tube/float combinations available for each tube. Please refer to the FLT series for specific ranges of each flow tube/float combination.
SPECIFICATIONS
Repeatability: ±0.25% FS
Max Pressure: 13.8 bar (200 psig)
Max Temperature: 121°C (250°F); 82°C (180°F) for water
Connections: 1/8 FNPT
| Features | Max Air flow 45,227 ml/min, 6,621 ml/min, Max Air flow 374 ml/min, 374 ml/min, 374 ml/min, Max Air flow 2,423 ml/min, 2,423 ml/min, 2,423 ml/min, Max Air flow 2,423 ml/min, 1,682 ml/min, 814 ml/min |
|---|---|
| Category | Meter |
| Media Type | Air, Water |
| Gas Flow Range | Refer to Product Specs |
| Liquid Flow Range | Refer to Product Specs |
| Accuracy | ±2% |
| Process Connection Type | NPT Female |
| Process Connection Size | 1/8" |
| Wetted Materials | Aluminium, Buna, Glass |
| Max Operating Pressure | 200 psi |
| Max Process Temperature | 121 °C (250 °F) |
| Scale | 0 to 150 |
| Valve Included | Yes |
