NEMA-6 Side Mount Liquid Level Switches
$47.83 Original price was: $47.83.$33.48Current price is: $33.48.
- NEMA-6 (IP68) Rated
- User Selectable, Normally Open or Normally Closed
- Mounts Horizontally
SKU: LVN-90 Categories: Control & Monitoring, Level Switches, Process Switches Tag: Omega Engineering
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.

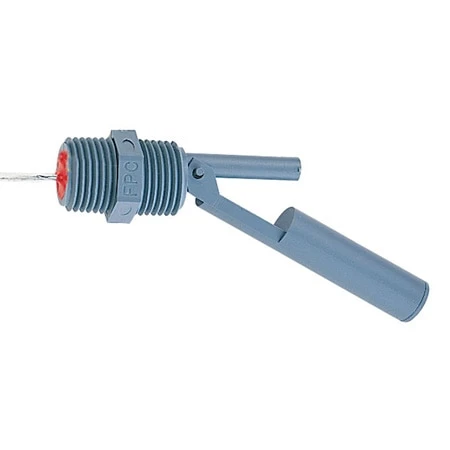

These liquid level switches are sealed with potting compound. The only path for liquid to the electrical switch would be through the wires. If the wires are terminated in an appropriate manner (eg. –NEMA-6 connectors), the level switch will meet or exceed a NEMA-6 rating, making them suitable for submersion with years of worry free operation in moisture-laden environments. A sealed SPST switch provides consistent accuracy and high repeatability with the effects of shock, vacuum or vibration minimized. The switch is extremely versatile since it is user selectable as a normally open or normally closed by simply reversing the float or the mounting of the switch. The standard 1/2″ NPT male fittings allow for quick installation in either the top or bottom of the tank or vessel.
| Max Operating Pressure | 100 psi, 500 psi |
|---|---|
| Max Process Temperature | 82 °C (180 °F), 149 °C (300 °F) |
| Wetted Materials | CPVC, PVDF, Polypropylene, 316 SS |
| Media Type | Liquid |
| Process Connection Type | NPT Male |
| Process Connection Size | 1/2" |
| Switch Rating and Type | 50 VA SPST |
| Features | Switch Type Selectable, NO or NC |
