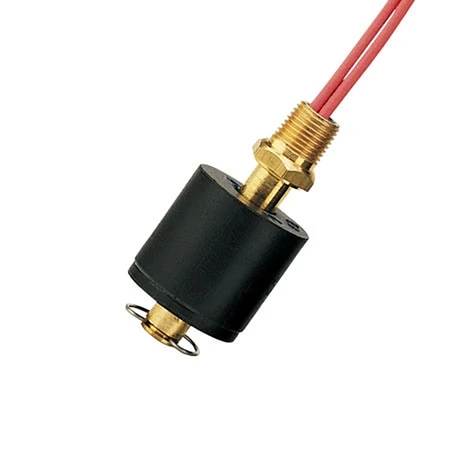

NEMA-6 Vertical Mount Liquid Level Switches
$76.73 Original price was: $76.73.$53.71Current price is: $53.71.
- Low Cost Compact Design
- NEMA-6 Rated
- User Selectable, Normally Open or Normally Closed
- Mounts Vertically at Top or Bottom of Tank
SKU: LVN-10 Categories: Control & Monitoring, Level Switches, Process Switches Tag: Omega Engineering
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.

These liquid level switches are sealed with potting compound. The only path for liquid to the electrical switch would be through the wires. If the wires are terminated in an appropriate manner (e.g. —NEMA-6 connectors), the level switch will meet or exceed a NEMA-6 rating, making them suitable for submersion with years of worry free operation in moisture-laden environments. A sealed SPST switch provides consistent accuracy and high repeatability with the effects of shock, vacuum or vibration minimized. The switch is extremely versatile since it is user selectable as a normally open or normally closed by simply reversing the float or the mounting of the switch. The standard NPT male fittings allow for quick installation in either the top or bottom of the tank or vessel.
| Max Operating Pressure | 160 psi, 225 psi |
|---|---|
| Process Connection Size | 1/8", 1/4" |
| Media Type | Liquid |
| Max Process Temperature | 110 °C (230 °F) |
| Wetted Materials | 316 SS, Brass, Buna |
| Process Connection Type | NPT Male |
| Switch Rating and Type | 50 VA SPST |
| Features | Switch Type Selectable, NO or NC, Max Process Temperature Water 82 °C (180 °F) |
