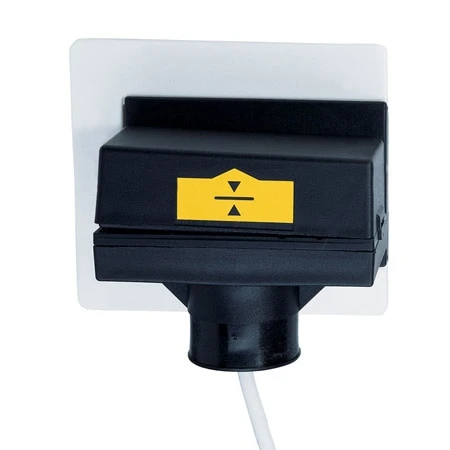

Non-Intrusive RF Capacitance Sensors Selectable NO Or NC

Original price was: $386.20.Current price is: $98.99.

Detects Liquid Through Plastic or Fiberglass Tank Walls Up to 1′ Thickness
1 AMP SPST Relay Output Standard
Sensor Conveniently Slides In and Out of Mounting Bracket In PE or PP
Ideal For Many Ultrapure and Sanitary Applications

SKU: LVP-51-R Categories: Control & Monitoring, Level Switches, Process Switches Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

OMEGA ® non-intrusive RF capacitance sensors deliver accurate and reliable liquid level detection with an SPST mechanical relay output. A versatile weld-on fitting enables the sensor to be mounted directly to the wall of any standard polyethylene, fiberglass or polypropylene tank. Simply align the fitting with the tank and press it into place. An engineered adhesive holds the fitting during welding and provides a seal between the sensor and the tank wall. OMEGA’s two-step calibration feature ensures the highest level of dielectric sensitivity.

Media Type	Liquid
Max Process Temperature	80 °C (176 °F)
Wetted Materials	PP
Supply Power	12 to 30 Vdc
Switch Rating and Type	1 A SPST
Features	Direct mount up to 1" wall thickness, Switch User selectable, NO or NC
