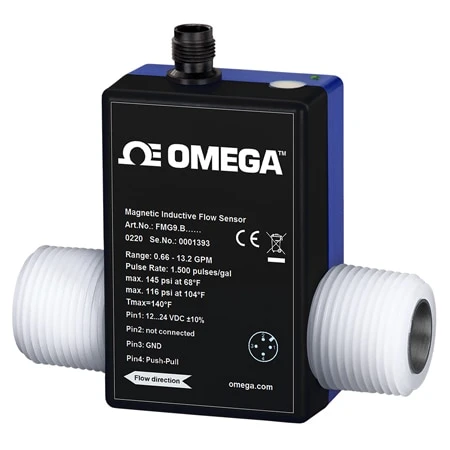

OEM Lightweight And Compact Design Electromagnetic Flow Meter

Original price was: $377.00.Current price is: $96.99.

Magnetic Flow Meter with No Moving Parts or Obstructions
Independent to Changes of Temperature, Pressure, Viscosity
Lightweight and Compact Design
PVDF and 316L Wetted Parts
Fast Response (<100 ms)
See Accessories for Cables and Power Supplies

Flow Range

Wetted Materials

Output Signal

Process Connection Type

Process Connection Size

Clear

SKU: FMG920B-SS-PO-NPT Categories: Electromagnetic Flow Meters, Flow Instruments, Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

OMEGA’s FMG90B Series electro-magnetic flow sensor for conductive liquid media was developed for OEM applications and does not contain any moving parts. FMG90B series is the most economic electromagnetic flowmeter due to the cost optimized plastic construction. Its design is compact and lightweight. Six flow ranges are available. Changes in temperature, density, viscosity, concentration or electrical conductivity of the medium do not affect the output signal. The sensor is intended for continuous measurement of flow rates or for dosing/batching of liquids with a minimum conductivity of 20 ?S/cm. .

Flow Range	1.3 to 52.8 GPM, 0.66 to 13.2 GPM, 3.3 to 66 GPM, 0.026 to .53 GPM, 0.066 to 1.32 GPM, 0.26 to 5.3 GPM
Wetted Materials	SS, PVDF, EPDM, Hastelloy C, PVDF, FKM
Output Signal	Amplified Square Wave, 4 to 20 mA, 0.5 to 10 V
Process Connection Type	NPTM, BSPP
Process Connection Size	1", 3/4", 1 1/4", 3/8", 1/2"
Category	Meter
Accuracy	+/- 0.7%
Max Operating Pressure	145 psi @ 68F
Max Process Temperature	140F (60C)
Media Type	Conductive Fluids
Supply Power / Frequency	12 to 24 Vdc
Features	Compact lightweight construction, No moving parts
