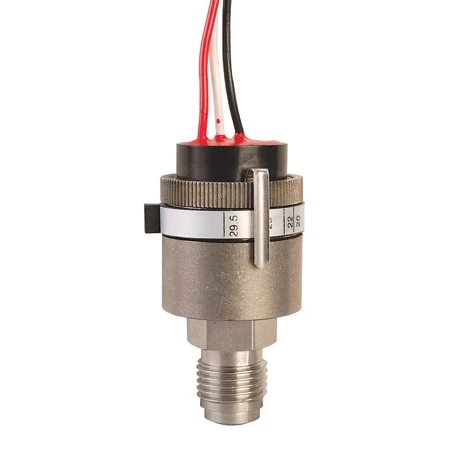

OEM Mechanical Pressure Switch With High Purity

Original price was: $177.54.Current price is: $95.99.

All Stainless Steel Wetted Parts
Sensing Element Capsule, Electron Beam Welded
Helium Leak Tested 4 x 10^-9 STD CC/sec
External Pressure Scale and Pointer For Easy Set Point Adjustment

Switch Type

Pressure Range

Pressure Type

Pressure Port Size

Pressure Port Type

Clear

SKU: PSW-691-N1 Categories: Pressure Measurement, Pressure Switches Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

SPECIFICATIONS
Process Temp: -54 to 107°C (-65 to 225°F); setpoint change of up to 2% of sensor capacity may be anticipated when switch is used either below -23°C or above 51°C
Cycling: Not to exceed 20 cycles/min, 1 million cycles
Proof Pressure: 150% max pressure
Wetted Parts: 17-7 PH electron beam welded, 303 SS fitting
Enclosure: 303 Stainless Steel body, zinc alloy with chromate finish locking ring and switch housing, valox cap
Dimensions: 51 L x 29 mm Dia (2 x 1.125′) with NPT fitting; 60 L x 29 mm Dia (2.375 x 1.125′) with VCR fitting
Weight: Approx. 85g (3 oz)
Pressure Port: 1/8-27 MNPT or 1/4 VCR
Electrical: 300 mm (12′) pigtail leads, 20 AWG, polyvinyl insulated
Wiring Code:
Pressure Switch: Black = Common, Red = N/C, White = N/O
Vacuum Switch: Black = Common, Red = N/O, White = N/C

Switch Type	(1) 1 A SPST, (1) 5 A SPST
Pressure Range	0.8 to 30 psi, 2 to 50 psi, 3 to 100 psi, 7.5 to 250 psi, 15 to 500 psi, -28.2 to 1.6 inHg
Pressure Type	Gauge, Vacuum
Pressure Port Size	1/8", 1/4"
Pressure Port Type	NPT Male, VCR
Deadband	Fixed
