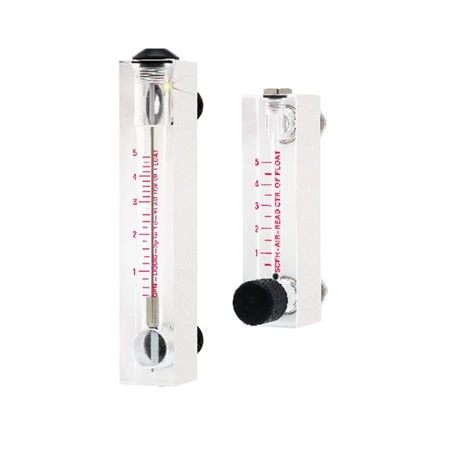

OEM Style Acrylic Variable Area Flow Meters
Original price was: $98.97.$69.28Current price is: $69.28.
- 50 mm, 75 mm, 127 mm, and 250 mm (1.97′, 2.96′, 5′ and 9.85′) Scale Lengths
- Floats Are Rod-Guided in Most Models
- Metering Valves Available
- Rear Inserts Provided for Panel Mounting
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
FL4000 OEM-style acrylic Variable Area Flow Meters are precisely machined from rugged, solid acrylic blocks for superb durability. They are available in 50 mm, 75 mm, 127 mm, and 250 mm scale lengths (1.97, 2.96, 5 and 9.85′) to provide desired accuracies from 2% to 6%. Designed for front-panel mounting, the rear ports extend through the panel for easy hookup. Mounting threads are also provided. Units are available with and without valves.
SPECIFICATIONS
Construction: Acrylic tube, 316 SS float and guide rod (no guide rod for FL4211 through FL4215 air meters), PVC end fittings (brass on FL4200 Series), EPR O-rings, optional brass valve
Max Pressure/Temperature:
   Water Ranges: 125 psig @ 21°C (70°F); 54°C (130°F) at 0 psig
   Air ranges: 100 psig @ 21°C (70°F); 38°C (100°F) @ 0 psi
Full Scale Accuracy/Repeatability:
  FL4200: 6/2%
  FL4300 and FL4400: 4/1%
  FL4500: 3-1/2%
  FL4600: 2-1/2%
| Media Type | Air, Water |
|---|---|
| Gas Flow Range | 0.5 to 5 SCFH, Not Applicable, 0.26 to 2.6 SCFH, 1 to 10 SCFH, 2 to 20 SCFH, 3 to 30 SCFH, 6 to 60 SCFH, 10 to 100 SCFH, 18 to 180 SCFH, 0.4 to 4 SCFM, 4 to 40 SCFM, 6.2 to 62 SCFM, 0.68 to 6.8 SCFM, 0.8 to 8 SCFM, 2 to 20 SCFM, 0.85 to 8.5 SCFM, 1.45 to 14.5 SCFM |
| Liquid Flow Range | Not Applicable, 0.7 to 7 GPH, 1.2 to 12 GPH, 2.2 to 22 GPH, 4.4 to 44 GPH, 6 to 60 GPH, 0.1 to 1 GPM, 0.2 to 2 GPM, 0.35 to 3.5 GPM, 0.5 to 5 GPM, 1 to 10 GPM, 1.5 to 15 GPM, 2 to 20 GPM, 10 to 100 GPH |
| Accuracy | ±6%, ±4%, ±3%, ±2% |
| Process Connection Type | NPT Female, NPT Male |
| Process Connection Size | 1/4", 1", 1/2" |
| Wetted Materials | 316 SS, Acrylic, Brass, EPR, 316 SS, Acrylic, PVC, EPR, 316 SS, Acrylic, PVC, Brass, EPR |
| Max Operating Pressure | 100 psi, 125 psi |
| Max Process Temperature | 38 °C (100 °F), 54 °C (130 °F) |
| Valve Included | Yes, No |
| Category | Meter |
| Scale | Direct Read |
| Features | Panel Mount |
