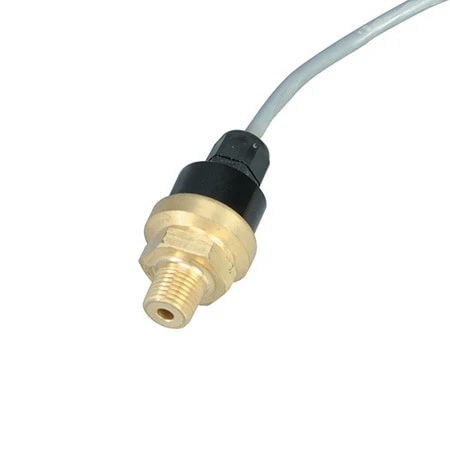

OEM Style, Compact Pressure Transducers With Cable | PX180B

Original price was: $239.21.Current price is: $95.99.

Being replaced by our new px190 series
Excellent Total Accuracy and Interchangeability
Gage Pressure, Vacuum, and Compound Ranges Available
Rugged Compact Design

Pressure Range

Pressure Type

Accuracy Value(compensated range)

Output Signal

Electrical output

Clear

SKU: PX180B-006GV Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The PX180B series has been replaced by the new and improved PX190 series. Many ranges are in stock, available for immediate shipment.

OMEGA’s PX180B Series transducers, designed for general industrial and commercial requirements, offer excellent performance in a wide range of applications. They are based on proven micro-machined silicon technology, providing high reliability, long-term stability, and low cost. They are extremely accurate with less than 0.3% reference accuracy.

SPECIFICATIONS
Excitation: 10 Vdc (regulated) 12 Vdc max
Output: 0 to 50 mV for 0-1 psi models
0 to 100 mV all other ranges; Bridge Output
Load Resistance: 50,000 Ohms minimum
Accuracy: 0.3% BFSL maximum (includes linearity, hysteresis, and repeatability)
Operating Temperature:-40 to 80°C (-40 to 176°F)
Compensated Temperature:-25 to 75°C (-13 to 167°F)
Process Temperature:-40 to 100°C (-40 to 212°F)
Thermal Zero Effect: 2% FS maximum over compensated temperature range
Thermal Span Effect: 2% FS maximum over compensated temperature range
1 Year Stability: <0.25% FS
Proof Pressure: 2x FS (750 psig for 500 psig range)
Burst Pressure: 3x FS or 750 psig, whichever is less
Wetted Parts: brass, borosilcate, silicon, RTV, and epoxy
Vibration: 10 g, 55 to 2000 Hz
Shock: 30 g
Process Connection: 1/8 NPT male
Electrical Connection: 0.4 m (18′) 24 AWG cable
Weight: 142 grams (5 oz)

Pressure Range	0 to 6 psi, 0 to 15 psi, 0 to 200 psi, -15 to 15 psi, 0 to 30 psi, 0 to 60 psi
Pressure Type	Gauge, Compound Gauge
Accuracy Value(compensated range)	±0.5%, ±0.3%
Output Signal	Ratiometric mV/V, Voltage, Current
Electrical output	10 mV/V, 1 to 5 Vdc, 4 to 20 mA
Accuracy Class	> 0.25%
Pressure Port Size	1/8"
Pressure Port Type	NPT Male
Connection/Termination	Cable
Operating Temperature Range	-40 to 80 °C (-40 to 176 °F)
Additional Features	Not Applicable
