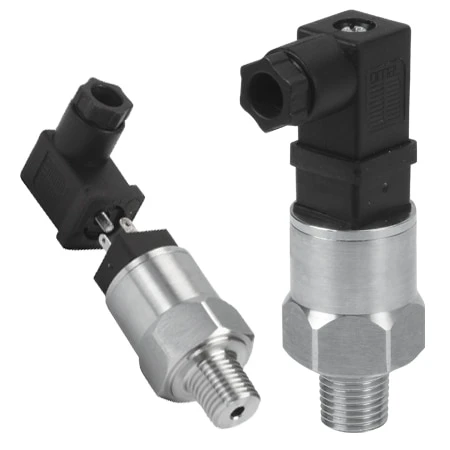

OEM Style, Compact Pressure Transmitters

Original price was: $127.08.Current price is: $88.96.

Compact and affordable for OEM applications
Easily configurable, now with expanded options
Reliable outputs with signal conditioning
Durable, stainless steel housing resists corrosion in harsh industrial environments

Pressure Range Max

Pressure Range

Pressure Type

Accuracy Class

Output Signal

Electrical output

Pressure Port Size

Connection/Termination

Clear

SKU: PX119-150GI Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Pressure Without the Pain

Ideally suited for material handling, industrial and mobile equipment applications where a small, yet rugged SS body size is desired at a reasonable price point. The body is machined from a single piece of stainless steel to provide added protection for the internal electronics as well as prevent corrosion from most applications. A piezoresistive ceramic sensor along with ASIC signal conditioning provides an excellent thermally compensated output.

PX119 Low Cost SS Compact Pressure Transmitter

SIMPLE
MULTIPURPOSE
COMPACT

Monitor air brake pressure
Monitor pressure/height in vehicle suspension
Regulate pneumatic door operation

Monitor excessive load
Monitor lift operation
Monitor compact pressure

Great cost: performance ratio
Accuracy: 0.5% BFSL
Large pressure range
15 to 5000 psi (absolute or gauge)
Piezoresistive ceramic diaphragm
Excellent thermally compensated output
Operating temp: -40 to 135°C (32 to 185°F)
Reliable output with signal conditioning
Output: 4 to 20 mA or 0 to 5 Vdc
Input: 8 to 30 Vdc
Response time: 1 ms
Rugged form factor
Shock and vibration resistant
10g for <58 psi/20g for >58 psi
Resists corrosion and water
304 SS body
Wetted materials: Ceramic AI₂O₃, NBR

Pressure Range Max	150, 15, 30, 60, 100, 1000, 200, 2000, 300, 3000, 500, 1500, 5000, 600
Pressure Range	0 to 150 psi, 0 to 15 psi, 0 to 30 psi, 0 to 60 psi, 0 to 100 psi, 0 to 1000 psi, 0 to 200 psi, 0 to 2,000 psi, 0 to 300 psi, 0 to 3,000 psi, 0 to 500 psi, 0 to 1500 psi, 0 to 5000 psi, 0 to 600 psi
Pressure Type	Gauge, Absolute
Accuracy Class	> 0.25%, none
Output Signal	Current, Voltage
Electrical output	4 to 20 mA, 0 to 5 Vdc
Pressure Port Size	1/4", 1/8"
Connection/Termination	Mini DIN 43650 C, Cable, M12
Pressure Range Unit	psi
Pressure Range Min	0
Accuracy Value(compensated range)	±0.5%
Pressure Port Type	NPT Male
Operating Temperature Range	-40 to 135 °C (-40 to 257 °F)
