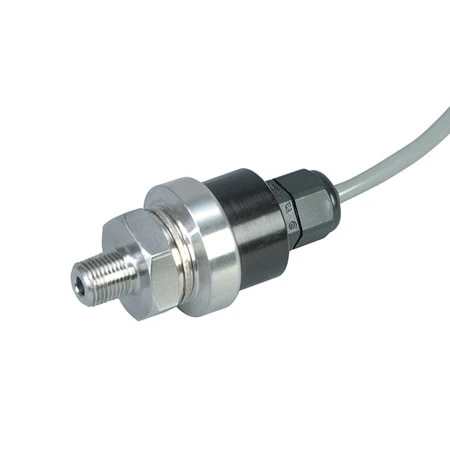

OEM Style, Compact, Vacuum And Absolute Pressure Transducers

Original price was: $310.18.Current price is: $96.99.

Being replaced by our new px190 series
Digitally Compensated for better Total Accuracy and Interchangeability
Gage, Absolute, Vacuum and Compound Ranges Available
Rugged, Compact Design

Pressure Range

Pressure Type

Output Signal

Electrical output

Connection/Termination

Clear

SKU: PX481A-015G5V Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The PX480A series has been replaced by the new and improved PX190 series. Many ranges are in stock, available for immediate shipment.

OMEGA’s PX480A Series transducers, designed for general industrial and commercial requirements, offer excellent performance in a wide range of applications. They are based on proven micro-machined silicon technology, providing high reliability, long-term stability, and low cost. They are extremely accurate with less than 0.3% FS reference accuracy. Wetted parts are made of 316L stainless steel for a wide range of media compatibility.

SPECIFICATIONS
Excitation: 10 Vdc (regulated)
Output: 0 to 50 mV for 0-1 psi model, all other ranges 0 to 100 mVdc
Load Resistance: 50,000 Ohms minimum
Accuracy: 0.3% BFSL maximum (includes linearity, hysteresis, and repeatability)
Operating Temperature: -40 to 80°C (-40 to 176°F)
Compensated Temperature: -25 to 75°C (-13 to 167°F),
0 to 50°C (32 to 122°F) for 6 psi ranges and below
Process Temperature: -40 to 100°C (-40 to 212°F)
Thermal Zero Effect: 2% FS maximum over compensated temperature range
Thermal Span Effect: 2% FS maximum over compensated temperature range
1 Year Stability: <0.25% FS
Proof Pressure: 2x FS
Burst Pressure: 3x FS
Wetted Parts: 316L stainless steel
Vibration: 10 G, 55 to 2000 Hz
Shock: 30 G
Process Connection: 1/8 NPT male
Electrical Connection: 0.4 m (18′) 24 gage cable
Weight: 142 g (5 oz)

Pressure Range	0 to 15 psi, 0 to 6 psi, 0 to 60 psi, 0 to 30 psi, 0 to 100 psi, -15 to 15 psi, 0 to 300 psi, 0 to 500 psi
Pressure Type	Gauge, Absolute, Compound Gauge
Output Signal	Voltage, Ratiometric mV/V, Current
Electrical output	1 to 5 Vdc, 10 mV/V, 4 to 20 mA
Connection/Termination	Cable, Mini DIN 43650 C
Accuracy Class	> 0.25%
Accuracy Value(compensated range)	±0.3%
Pressure Port Size	1/8"
Pressure Port Type	NPT Male
Operating Temperature Range	-40 to 80 °C (-40 to 176 °F)
Additional Features	Not Applicable
