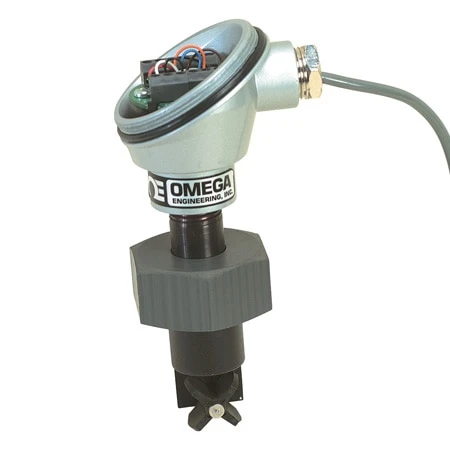

Paddlewheel Flow & Temperature Meter

Original price was: $315.00.Current price is: $96.99.

Measures Both Flow and Temperature
Wide Chemical Compatibility
4 to 20 mA or 1 to 5 Vdc Field Selectable Output
NEMA-4 Housing

Flow Range

Wetted Materials

Compatible Fittings

Pipe Size Range

Process Connection Type

Process Connection Size

Clear

SKU: SYS/FP7002A/FP7010-GI Categories: Flow Instruments, Flow Meters, Paddlewheel Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The FP7002 Series Paddlewheel Flow sensor/transmitter flow system provides a low cost, factory

calibrated, simple, and easy to install solution for applications requiring a remote long distance flow

and temperature sensor located away from the main indicating meter or controlinstrumentation. When

ordered with an FP7000 series installation fitting, the sensor/transmitter is factory calibrated to match the

flow rate of the fitting selected. Example: if you ordered an FP7002 sensor/transmitter with an FP7010

PVC fitting, the analog output of the transmitter will be factory calibrated to give 20 mA output at the

max flow rate of 50 GPM and 4 mA out at 0 GPM. The analog output can be converted to 1 to 5 Vdc output

in the field without recalibrating the system. Also now included into the FP7002 design at no extra

charge is an independent temperature sensor/transmitter with an industry standard 2-wire, 4 to 20 mA

loop output scaled over a 0 to 100°C temperature range.

SPECIFICATIONS

Paddlewheel Output

Accuracy: ±2% FS

Repeatability: ±1% FS

Power: 12 to 18 Vdc @ 50 mA max

Output: 3-wire, 4 to 20 mA (1 to 5 Vdc with external 250 Ω resistor)

Max Loop Resistance: &Omega = (Vsupply–12 V)/0.02 A

Wetted Materials:

Sensor Body: Polypropylene

O-Ring: FKM

Paddle: PVDF

Locking Nut:

FP7002: PVC

FP7002A: Brass

Fluid Temperature/Pressure Range: Do not exceed maximum ratings of the piping. Depending on the

material of the fitting, the operating temperature/pressure may be limited by the piping and not by

the sensor. For all PVC tee fittings, do not exceed 150 psig @ 27°C (80°F), 100 psig @ 38°C

(100°F), 60 psig @ 49°C (120°F) or 30 psig @ 60°C (140°F), owing to the insert in

the tee. FP7000 sensor: 0 to 26°C (32 to 80°F) up to 150 psig; max pressure decreases 1.1 psig

per each 0.56°C (1°F) above 27°C (80°F) for a max temperature of 93°C (200°F)

at 18 psig max

Weight:

FP7002: 0.3 kg (0.75 lb)

FP7002A: 0.4 kg (1 lb)

Max Viscosity: 5 cps

Temperature Output

Temperature Range: 0 to 100°C (32 to 212°F)

Accuracy: ±1.7°C (3.1°F)

Power: 12 to 18 Vdc @ 30 mA

Output: 2-wire, 4 to 20 mA (1 to 5 Vdc with external 250 Ω resistor)

Max Loop Resistance: Ω = (Vsupply – 12 V)/0.02 A

Flow Range	3 to 50 GPM, 2 to 460 GPM, 2 to 30 GPM, 5 to 90 GPM, 7 to 125 GPM, 11 to 205 GPM, 15 to 285 GPM, 25 to 460 GPM
Wetted Materials	Galvanized Iron, Brass, PP, PVDF, FKM O-RING, PP, PVC, PVDF, FKM O-RING, Brass, PP, PVDF, FKM O-RING
Compatible Fittings	Not Applicable, FP7000 Sensor Installation Fittings, User Must Select
Pipe Size Range	Not Applicable, 3/4 to 3"
Process Connection Type	NPT Female, Not Applicable
Process Connection Size	1", Not Applicable, 3/4", 1 1/4", 1 1/2", 2", 2 1/2", 3"
Category	Meter
Accuracy	±2%
Max Process Temperature	93 °C (200 °F)
Max Operating Pressure	150 psi
Output Signal	Amplified Square Pulse
Supply Power	12 to 18 Vdc
Display	No Display
Features	Temperature Sensor Output
