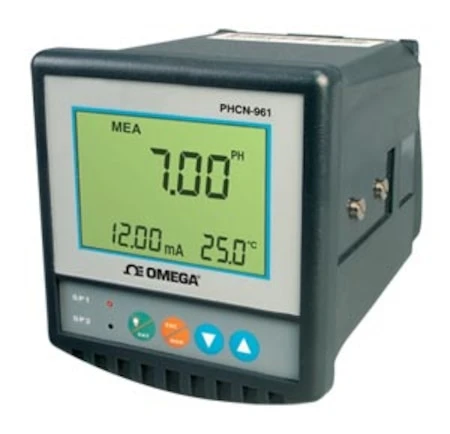

Panel And Wall Mount PH Controllers

Description

The PHCN-961/962 series of pH controller and transmitter provides a reliable method of monitoring and controlling pH in water treatment, electrolytic water cleaning, chemical industry, food process, cleaning water or wastewater treatment, and neutralization processes.

The controllers standard features include a digital display capable of displaying pH readings between -2 and 16 pH or ORP readings between -2000 an 2000 mV. Additional features include temperature, and status of relays, adjustable dual alarm set points, dead band adjustments of 0.01 to 2 pH of the set point, and menudriven program to set up pH or ORP calibration.

The PHCN-961/962 is a basic pH or ORP controller, it includes a NEMA 4X (IP65) enclosure, digital display, two separate set points for high and low alarms, adjust dead bands, three 1 amp SSR. Accepts one pH or ORP electrode input through supplied pH transmitter.

SPECIFICATIONS
Operating Temp: -10 to 50°C (14 to 122°F)
Humidity: 10 to 95% (no frozen dew)
Control Outputs: 3 to 250 Vac powered SPST 1 Amp relays
Enclosure: NEMA 4X (IP 65)
Power: 110 or 220 Vac/ 60 or 50 Hz
Connector: BNC
Display: 4-digit LCD blue backlight, 13.7 mm (0.54″) pH/ORP Controller
Range: -2.00 to 16.00 pH
Resolution: 0.01 pH
Accuracy: ±0.01 pH
mV Range: -2000 to 2000 mV
Resolution: 1 mV
Accuracy: ±1 mV
Temperature Compensation: Manual or automatic 1000 Ω platinum RTD (±10°C offset adjustment)
Dead Band Adjustment
&nbsp&nbsp&nbsp&nbsppH: 0.01 to 2 pH
&nbsp&nbsp&nbsp&nbspORP: 1 to 200 mV
Communication Output: 4 to 20 mA and RS485
pH/ORP Input: BNC (1012 impedance)
Main Fuse: 250 mA, anti-surge
