Parallel Pneumatic Grippers Miniature For Clean Room Applications

Original price was: $392.00.Current price is: $97.99.

Pneumatic Parallel Mini Gripper Available in 3 Stroke Lengths
Precision Gripper—Preloaded V Roller Bearings Eliminate Side Play Resulting in Excellent Part Positioning
Clean Room Grease and Corrosion Resistant Shields Allow for Use in Clean Room and Harsh Environments
Gripper Accuracy of 0.05 mm (0.002′) and Repeatability of 0.03 mm (0.001′)

SKU: RPMC-2M Categories: Control & Monitoring, Grippers, Motion and Position Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

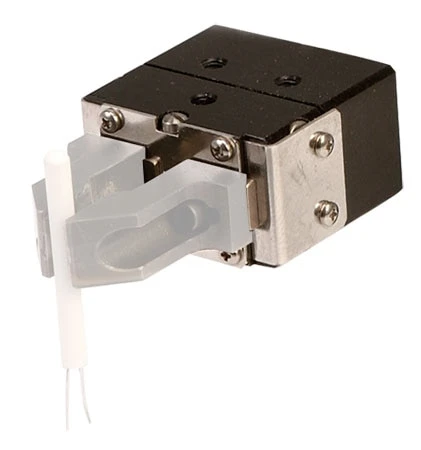

RPMC Series Gripper is a miniature pneumatic parallel gripper with excellent parallelism and accuracy between the gripper mounting surface and jaw surface. Jaws are front mounted and are supported with ‘Dual-V’ roller bearings to provide low friction motion and are preloaded for maximum support and zero side play. RPMC Pneumatic Grippers are top mounted and have air ports on the side or top for manifold mounting to keep the air line away from the grip area. These grippers are available in stroke lengths from 3.2 to 6.3mm (0.13 to 0.25′) with a gripper force of 36 N (8 lbs).

RPMC Grippers are Clean Room and Harsh Environment rated with a corrosion resistant shield to protect the drive and bearing mechanism from chips and other contaminants. All internal components are lubricated with clean room grade lubricant and the scavenger port can be used with vacuum to prevent escapement of particulate. It can also be used with pressure to repel particulate away from the gripper jaws. This pneumatic gripper is designed for class 10 clean room, FDA, and medical applications.

Pneumatic linear motion components are double acting air cylinders that require a dry air supply with filtering to 40 microns or better. For best control of pneumatic components, flow control valves (regulating out) should be installed to regulate the speed of the device.

TECHNICAL SPECIFICATIONS
Pneumatic Specifications
Pressure Operating Range: 3 to 7 bar (40 to 100 psi)
Cylinder Type: Double acting
Dynamic Seals: Internally lubricated Buna-N
Valve Required to Operate: 4-way, 2-position
Air Quality Requirements
Air Filtration: 40 micron or better
Air Lubrication: Not necessary*
Air Humidity: Low moisture content (dry)
Temperature Operating Range
Buna-N Seals (Standard): -35 to 80°C (-30 to 180°F)
FKM Seals (Optional): -30 to 120°C (-20 to 250°F)
Maintenance Specifications
Expected Life:
Normal Application: 5 million cycles
With Preventative Maintenance: 10+ million cycles*
Field Repairable: Yes
*Addition of lubrication will greatly increase service life.

SPECIFICATIONS	RPMC-1M	RPMC-2M	RPMC-3M
Total Rated Grip Force F @ 100 psi, 7 bar	36 N (8 lb)	36 N (8 lb)	36 N (8 lb)
Stroke	3.2 mm (0.13′)	4.8 mm (0.19′)	6.3 mm (0.25′)
Weight	0.024 Kg (0.052 lb)	0.026 Kg (0.058 lb)	0.034 Kg (0.074 lb)
Pressure Range	3 to 7 bar (40 to 100 psi)	3 to 7 bar (40 to 100 psi)	3 to 7 bar (40 to 100 psi)
Cylinder Bore Ø	10 mm (0.394′)	10 mm (0.394′)	10 mm (0.394′)
Displacement	0.13 cm3 (0.008’3 )	0.20 cm3 (0.012’3 )	0.25 cm3 (0.015’3 )
Temp Range(Standard Seals)	35 to 80°C (-30 to 180°F)	-35 to 80°C (-30 to 180°F)	-35 to 80°C (-30 to 180°F)
Temp Range(FKM Seals)	30 to 120°C (-20 to 250°F)	-30 to 120°C (-20 to 250°F)	-30 to 120°C (-20 to 250°F)
Actuation	0.10 sec	0.10 sec	0.10 sec
Accuracy	±0.05 mm (±0.002′)	±0.05 mm (±0.002′)	±0.05 mm (±0.002′)
Repeatability	±0.03 mm (±0.001′)	±0.03 mm (±0.001′)	±0.03 mm (±0.001′)
Valve Required to Actuate	4-way, 2-position	4-way, 2-position	4-way, 2-position
