PFA Coated Thermocouple Probes For Chemical Environments

Original price was: $315.66.Current price is: $96.99.

Made with Special Limits of Error Material
Chemically Inert
Electrically Insulated
Rated to 205°C (400°F)

Thermocouple Type

Process Temperature Range

Junction Type

Probe Diameter

Probe Length

Connector Style

Connector Color Code Standard

Clear

SKU: CXSS-18G-36-PFA Categories: Probes with Integral Connectors, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

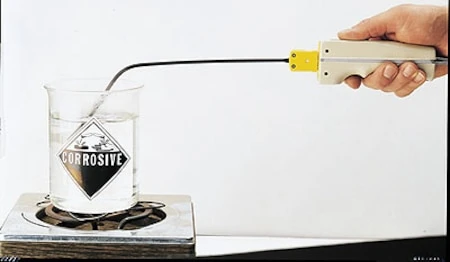

PFA Coated Probes are the perfect solution when there is a need to measure the temperature of caustic or corrosive chemical solutions in industrial and laboratory environments. The superior corrosion resistance of PFA allows you to measure the temperature of sulfuric, hydrochloric, nitric and chromic acids, as well as caustic compounds.

Examples of some popular models are listed in the To Order Box. For full configuration availability please use the Part Number Builder.
exposed junction.

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	E, K, T, J
Process Temperature Range	0 to 650°C (32 to 1200°F), 0 to 920°C (32 to 1690°F), 0 to 1150°C (32 to 2100°F), 0 to 200°C (32 to 400°F), 0 to 260°C (32 to 500°F), 0 to 370°C (32 to 700°F), 0 to 315°C (32 to 600°F), 0 to 510°C (32 to 950°F), 0 to 440°C (32 to 825°F), 0 to 720°C (32 to 1300°F), 0 to 520°C (32 to 970°F)
Junction Type	Grounded, Ungrounded
Probe Diameter	0.125 in, 0.062 in, 0.250 in, 1.50 mm, 3.00 mm
Probe Length	36 in, 12 in, 18 in, 24 in, 6 in, 3 in, 48 in, 1200 mm, 8 in, 300 mm, 600 mm
Connector Style	Standard Connector, Dual Standard Connector
Connector Color Code Standard	ANSI (Standard), IEC
Sensor Type	Thermocouple
Sensor Application	Immersion Probe
Sheath Material	PFA Coated
