PFT-Series
Original price was: $324.00.$99.99Current price is: $99.99.
- Long product life even in applications with particulate due to bearings and shaft that offer excellent wear protection
- Use in irrigation applications with weatherproof and submersible ratings
- Save time and inventory with one unit that is adjustable over a large pipe size range
- Application versatility with a variety of wetted material selections
- Reduce need for additional external components with integral 4-20 mA output
- Eliminate concerns regarding magnetic material in flow due to sensor technology, which uses inductive sensing and no magnets
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
Dwyer Instruments is now a DwyerOmega product brand
Overview

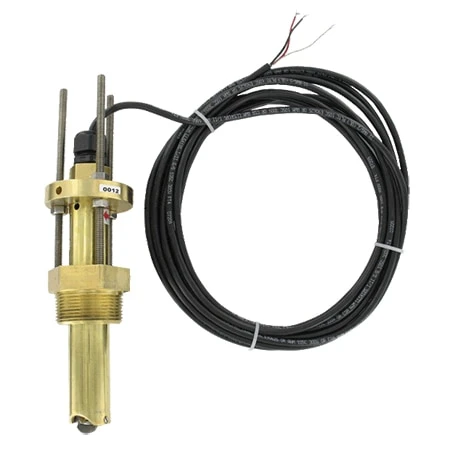

The series PFT Insertion Paddlewheel Flowmeters are used to monitor liquid flow rates in pipes from 1-1/2 to 40″ and is available in brass or 316 SS body. The unit outputs a frequency proportional pulsed or 4 to 20 mA output. The pulse models are a square wave output signal with frequency proportional to the flow velocity and the 4 to 20 mA models have a linear output of the velocity with 4 mA equal to 4 ft/s and 20 mA equal to 25 ft/s
Product Applications
- Irrigation Ground water remediation
- Cooling systems
- Pump protection
- Leak detection
- Filtration systems
| Process Connection Type | 1-1/2" male NPT, 1-1/2" male BSPT |
|---|---|
| Process Connection Size | 1-1/2" NPT, 1-1/2" BSPT |
| Wetted Materials | Brass, FKM, Tungsten Carbide, PTFE, 316SS, FKM, Tungsten Carbide, PTFE |
| Features | None, Adjustable Hot Tap Insertion, Adjustable Insertion |
| Output Signal | 4 to 20 mA, Pulse |
| Compatible Fittings | Hot Tap, Hot Tap Servicing, Not Applicable |
| Max Operating Pressure | 400 psig (27.6 bar) @ 100°F (37.8°C) |
| Supply Power | 10 to 35 VDC |
| Compliance | CE |
| Pipe Size Range | 1-1/2 to 40" (38.1 to 1016 mm) |
