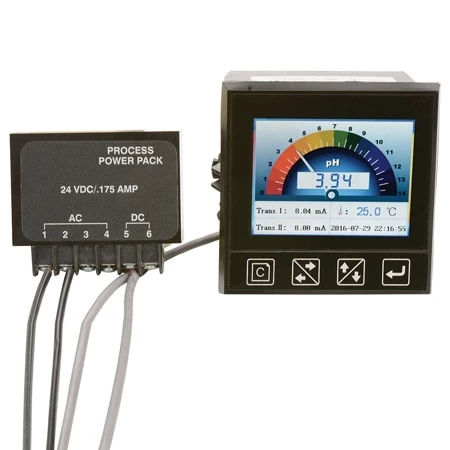

PH/ORP Transmitter And Controller With TFT Color Display

The PHCN-85 has two 4 to 20 mA outputs to control or retransmit the pH or ORP and temperature value. In addition, this powerful instrument has 3 relay outputs for pH, ORP, temperature or timing.

The PHCN-85 is also packed with standard features like RS485 communications, a calendar function and password protection. The power supply input even has automatic polarity detection.

Specifications
Measurement:
pH:
Range: 0.00 to 14.00
Resolution: 0.01
Accuracy: ±0.1
ORP:
Range: -1999 to +1999
Resolution: mV, 0.1mV
Accuracy: ±5 mV (display)
Temperature:
Range: 0 to 100°C (32 to 212°F)
Resolution: 0.1
Accuracy: ±0.5
Automatic Temperature Compensation: 0 to 50°C (32 to 122°F)
Temperature Input: 1000 Ω RTD
Current Outputs (2): Isolated, adjustable, reversible, 4 to 20 mA output, control or transmitter mode
Loop Resistance: 400 Ω maximum, DC 24V
Current Output: 4 to 20 mA
Resolution: ±0.1 mA
Relay Outputs (3): Contact photoelectric relay output, programmable; temperature, pH/ORP output can be set for pH/ORP/temperature or timing ON/OFF or PID control
Relay: Resistance load 50 mA maximum AC/DC 30V
Data Communication: RS485 Modbus protocol
Power Supply: DC 24V ±4V
Consumption: <5.5 W
Working Environment
Temperature: 0 to 50°C (32 to 122°F)
Relative Humidity: ≤85% RH (non-condensing)
Storage Temperature: -20 to 60°C (-4 to 140°F)
Relative Humidity: ≤85% RH (non-condensing)
Protection Level: NEMA 4 (IP65) with rear cover
Dimensions: 96 H × 96 W × 94 D mm (3.78 x 3.78 x 3.7″)
Panel Cutout: 91 × 91 mm (3.58 x 3.58″)
