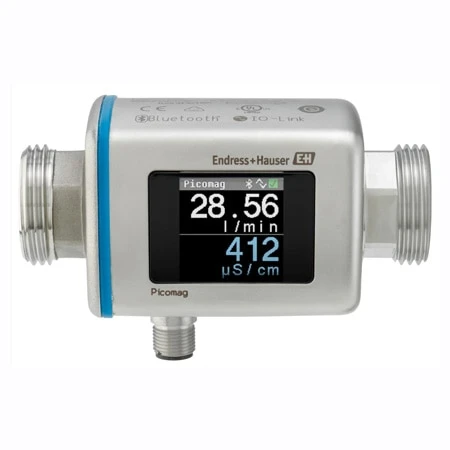

Picomag Magnetic Flow Meter W/Temperature & Conductivity Sensor

Original price was: $396.00.Current price is: $97.99.

Reliable measuring and monitoring of industrial water, cooling water, warm water or rinsing water
Simultaneous measurement of flow, temperature and conductivity
Time-saving device configuration even in difficult to reach places thanks to Bluetooth connectivity
Easy data access via intuitive SmartBlue App

Flow Range

Compatible Fittings

Process Connection Type

Process Connection Size

Features

Clear

SKU: DMA15-AAAAA1 Categories: Electromagnetic Flow Meters, Flow Instruments, Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Picomag – The compact alternative to a mechanical flowmeter

No moving parts, simple to install, maintenance free, high performance and future proof outputs at a price much less than a mechanical float or turbine meter sounds to good to be true, but now it’s a reality.

Simple configuration via Bluetooth or IOLink reduces dramatically any commissioning time and installation couldn’t be easier. A physical footprint so small by conventional offerings means you can hold even the 2” meter in your hand.

Works with any water-based liquid with a conductivity > 10uS/cm2 and at no extra cost measures temperature and conductivity giving you multi-variable monitoring capability.

We think we should also mention, for a measurement sensor, it looks pretty good too. Think about it, ‘What’s your reason not to change!’

21st Century Flowmetering essential features

Auto-rotatable display field:

Up to 4 variables displayed (Flow, Totalisation, Conductivity and Temperature), the display field rotates automatically depending on the installation position and flow direction. This means that the values are always easy to read.

SmartBlue App: For easy commissioning in the field:

The app allows for configuration as well as comprehensive access to device data. The device communication works via Bluetooth on IOS and Android devices.

Simple and easy to navigate allowing quick access to device and diagnostic functions
Wireless configuration/data retrieval for configuration of display outputs, flow direction, units, etc
Up to 10m separation making those difficult to assess installations not so difficult anymore.

IO-Link For seamless integration into your plant:

At some stage, you will probably be thinking of capturing all your data and implementing a smart sensor strategy. Even if you’re not ready now, thanks to the IO-Link connection which is a standard feature, Picomag will be ready when you are to integrate seamlessly into any communication and process automation system:

Compatible with all standard fieldbus systems
Comprehensive remote data access
Simple set up, no additional technology tools
Automatic configuration after device replacement
Simple wiring connections
Future Proof – Industry 4.0 ready

Picomag – The no compromise, No options, future proof Flowmeter solution for water based liquids.

Flow Range	0.013 to 9.2 gal/min (0.05 to 35 l/min), 0.026 to 19.8 gal/min (0.1 to 75 l/min), 0.052 to 39.6 gal/min (0.2 to 150 l/min), 0.4 to 198.1 gal/min (1.5 to 750 l/min)
Compatible Fittings	Choose From Accessories, Not Required
Process Connection Type	BSPP, NPTF
Process Connection Size	1/2", 3/4", 1", 2"
Features	Bluetooth, IO-Link, Adapter set for thread options, simultanious measurement of flow, temperature, and conductivity, Bluetooth, IO-Link, simultanious measurement of flow, temperature, and conductivity
Accuracy	+/- 0.8%
Max Operating Pressure	232 psi (16 bar)
Max Process Temperature	158F (70C)[1 hr @ 212F]*
Wetted Materials	316L SS, FKM, PEEK
Media Type	Conductive Fluids
Output Signal	Pulse, Current, Voltage
Supply Power	18 to 30 Vdc
