Pipe Mounted Transit-Time Ultrasonic Flow Meter & Display

Original price was: $381.00.Current price is: $95.99.

Bidirectional flow measurement system
Measures flow rate, total and velocity of water flow
Set up the meter through keypad interface or with SoloCUE® Flow Device Manager software
Compact enclosure uses large, easy-to-read graphical display

Pipe Diameter Range

Accuracy

Piping Material

Clear

SKU: DW-G-CC-E-S-WW-WW-XX-G-F Categories: Flow Instruments, Flow Meters, Ultrasonic Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

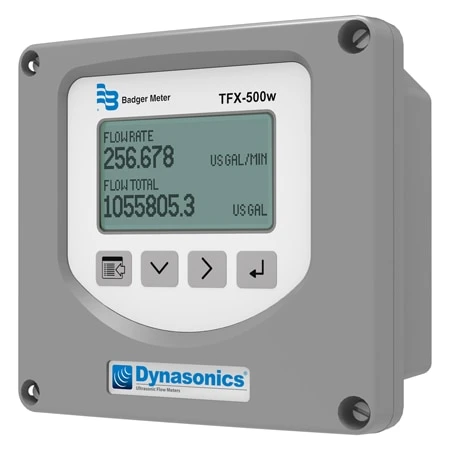

The TFX-500w transit time ultrasonic flow meter measures volumetric flow of clean water in pipes 2 in. or smaller. By clamping on the outside of the pipe, the ultrasonic meter installs without cutting or tapping the pipe.

Pipe Diameter Range	1", 1/2", 3/4", 1 1/4", 1 1/2", 2"
Accuracy	Up to ±1% of Reading, ±1% FS
Piping Material	ANSI Pipe, Copper Tubing, Stainless Steel Tubing
Velocity Range	0.1…40 ft/s (0.03…12 m/s), bidirectional
Media Type	Clean Fluids w/suspended solids or gas bubbles
Max Process Temperature	90 °C (194 °F)
Output Signal	4 to 20 mA & Two Pulse/Freq/Alarm
Display	LED
Supply Power	9 to 28 Vdc
Communication Protocol	Modbus RTU, BACnet MS/TP
Features	Keypad Programming
