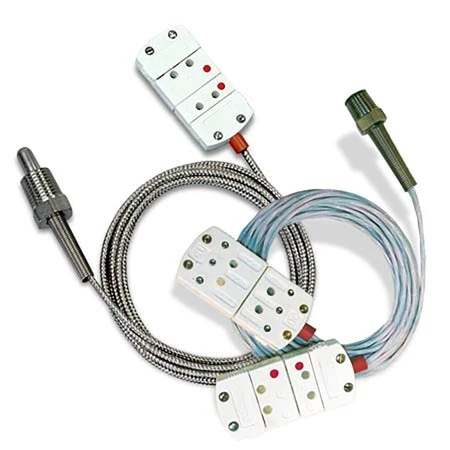

Pipe Plug RTD Probes With NPT Fitting And Lead Wire

Original price was: $138.14.Current price is: $96.99.

High Pressure RTD Plug Sensor
Available in Either Single or Dual RTD Sensors
72″ Leads
Available with 1/8NPT or 1/4NPT Mounting Threads

Process Temperature Max

Process Temperature Range

Additional Feature

Termination Connection Type

Cable Length

Cable Insulation

Nominal Output

Process Connection Size

Clear

SKU: RTD-NPT-72-E-1/4-MTP Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

RTD Single Sensor
This RTD Pt100 plug sensor is ideal for pressure vessel applications, pressurized containers and applications requiring a temperature sensor with an NPT mounting fitting. The single element design has a 1/4″ diameter, 304 stainless steel probe that extends 1/2″ from a 1/4″NPT mounting thread (optional 1/8″NPT mounting thread also available). Leads are 6′ long, stranded #26 AWG nickel plated copper, PFA-insulated & jacketed with steel overbraid. Sensors are supplied with or without subminiature connectors. Pressure rating is 2500 psi., and the maximum temperature rating is 230°C (445°F).

RTD Dual Element Sensor
Dual RTD pipe plug probes come standard with flush sensing surfaces which minimize interference with moving parts, and 1/8″NPT mounting threads (optional 1/4″NPT mounting threads also available). The leads are 6′ long, stranded #26AWG nickel plated copper, PFA insulated & jacketed cables with miniature connectors on each cable.

For complete product specifications see the Related Links section at the bottom of this page.

Process Temperature Max	230, 480
Process Temperature Unit	°C
Probe Diameter	0.25 in
Sheath Material	304 Stainless Steel
Number Of Wires	3
Accuracy	Class A per IEC60751
Sensor Application	Immersion Probe
Process Temperature Min	-50
Category	RTD
Process Temperature Range	-50 to 230°C (-58 to 446°F), -50 to 480°C (-58 to 896°F)
Additional Feature	none, Dual Elements
Termination Connection Type	3-Prong Miniature Connector, Stripped Leads, HH804 Connector, 3-Prong Standard Connector
Cable Length	72 in, 12 in, 36 in
Cable Insulation	PFA, Fiberglass, Fiberglass with Stainless Steel Overbraid, PFA with Stainless Steel Overbraid
Nominal Output	100 Ω, 1000 Ω
Process Connection Size	1/4" NPT, 1/8" NPT
Probe Length	0.5 in
