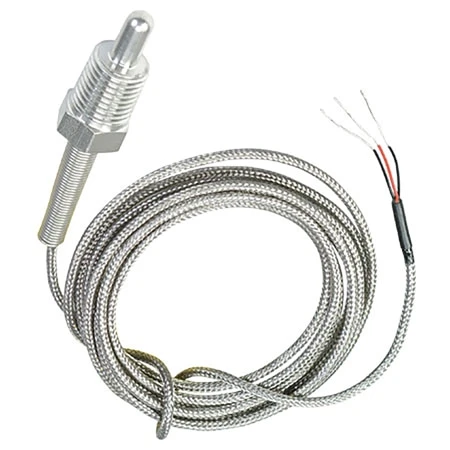

Pipe Plug Thermistor Probes With NPT Fitting And Lead Wire

Original price was: $114.08.Current price is: $79.86.

Ideal for Use in Pressure Vessel Applications 2500 PSI (172 Bar) Max.
Maximum Temperature 150°C (302°F) or 75°C (167°F) Depending on Option Selected.
6mm Diameter Sheath with 1/4 or 1/8NPT Mounting Thread Standard Sheath and Plug are 300 Series Stainless Steel
2 Meter (80′) #26AWG Stranded, PFA Insulated and Jacketed, SST Braided Cable Standard (Other Lengths Available Upon Request)

Process Temperature Max

Process Temperature Range

Process Connection Size

Accuracy

Nominal Output

Cable Length

Termination Connection Type

Clear

SKU: TH-44008-1/8NPT-24 Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

These sensors are designed to be conveniently mounted directly into ports with 1/8NPT or 1/4NPT threads. The housings are machined from 300 Series Stainless Steel, contain a stainless steel strain relief spring, and stainless steel braided cables for use in rugged applications.

Sensor Specifications:

Maximum Temperature: 150°C or 75°C Depending on Accuracy

Housing: ¼ or ¹⁄8 NPT with 6mm Diameter Tip

Cable: 2 meters of 2 Conductor, #26AWG Stranded, PFA Insulated and Jacketed, SST Braided Cable

Sensor Output: 2252Ω Standard, 3kΩ, 5kΩ, 10kΩ and 30kΩ Optional Resistances Also Available

Accuracy: ±0.2°C Standard, ±0.1°C Available

Note: The TH-44004-1/4NPT-80 model sensor replaces the original TH-44004-NPT-80 , the “1/4” before the NPT designation insures that you will get the correct mounting thread for your application.

Process Temperature Max	100, 75
Process Temperature Range	-80 to 100°C (-22 to 212°F), -80 to 75°C (-22 to 165°F)
Process Connection Size	1/8" NPT, 1/4" NPT
Accuracy	±0.2°C, ±0.1°C
Nominal Output	30000 Ω @ 25°C, 2252 Ω @ 25°C, 10000 Ω @ 25°C, 5000 Ω @ 25°C, 10,000 Ω @ 25°C
Cable Length	24 in, 18 in, 80 in, 240 in
Termination Connection Type	Stripped Leads, 2
Category	Thermistor
Process Temperature Unit	°C
Process Temperature Min	-80
Sensor Application	Immersion Probe
Number Of Wires	2
Sheath Material	304 Stainless Steel
Probe Diameter	0.25 in
Probe Length	0.5 in
Cable Insulation	PFA with Stainless Steel Overbraid
