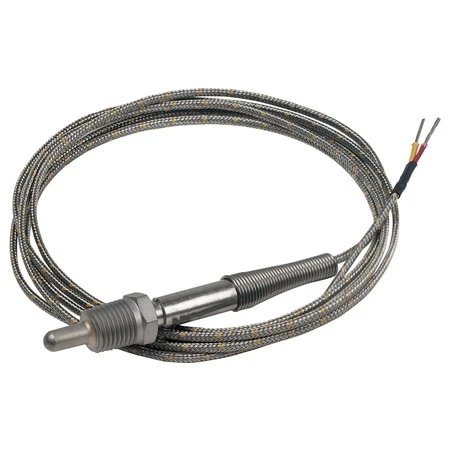

Pipe Plug Thermocouple Probes With NPT Fitting And Lead Wire

Original price was: $79.67.Current price is: $55.77.

Rugged 304SS Design with Strain Relief Spring
Fiberglass Leads Protected with Steel Overbraiding.
Striped Leads, Standard. SMP Connectors, Optional
Choice of J, K,T, or E Thermocouple Types

Thermocouple Type

Process Temperature Max

Process Temperature Range

Sensor Application

Process Connection Size

Junction Type

Probe Diameter

Probe Length

Cable Length

Termination Connection Type

Additional Feature

Clear

SKU: TC-K-1/8NPT-G-72-SMP Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

PIPE PLUG TTHERMOCOUPLE PROBES

These high pressure thermocouple plug sensors are ideal for vessel applications, pressurized containers and applications requiring mounted NPT security. The 304SS sheath has a 6.4mm (1/4″) dia. that extends 1/2″ from the end of the 1/4 or 1/8NPT pipe plug. Other length sheaths are available. The thermocouple-grade lead wires are stranded 20 AWG, fiberglass insulated, and stainless steel overbraided with stripped leads. Connectors are attached on request. Junctions are grounded or ungrounded for a pressure rating of up to 2500 psi. Exposed junctions are available for air or gas temperature measurements at ambient pressures. To tighten mounting threads, there is a hex section that is 22mm (.56″) across flats that are 5.8mm (.23″) wide.

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	K, E, J, T
Process Temperature Max	650, 520, 370, 315
Process Temperature Range	0 to 650°C (32 to 1200°F), 0 to 520°C (32 to 970°F), 0 to 370°C (32 to 700°F), 0 to 315°C (32 to 600°F)
Sensor Application	Immersion Probe, Air Probe
Process Connection Size	1/8" NPT, 1/4" NPT, 6.4 mm (0.25 in)
Junction Type	Grounded, Exposed, Ungrounded
Probe Diameter	0.125 in, 0.25 in, 6.4 mm (0.25 in)
Probe Length	0.5 in, 13 mm (0.5 in)
Cable Length	72 in, 180 in, 120 in, 140 in
Termination Connection Type	Miniature Connector, Stripped Leads, Standard Connector, SMPW-CC-K-M Connector, Miniature Connector with Cable Clamp
Additional Feature	none, Dual Elements, Immersion Probe
Category	Thermocouple
Process Temperature Unit	°C
Process Temperature Min	0
Sheath Material	304 Stainless Steel
Cable Insulation	Fiberglass with Stainless Steel Overbraid
