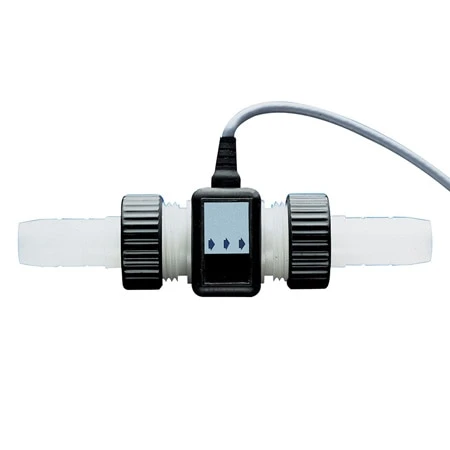

Plastic Flow Meters For Low To Medium Flow With Pulse Output

Original price was: $384.00.Current price is: $99.99.

±1% of Reading Accuracy
±0.1% of Reading Repeatability
Six Flow Ranges, from 0.1 to 120 LPM
Turn Down Up to 30:1

Flow Range

Wetted Materials

Process Connection Type

Process Connection Size

Clear

SKU: FTB602B-T Categories: Flow Instruments, Flow Meters, Turbine Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The OMEGA™ FTB600B Series flow meters feature an infrared, electro-optical transmitter and receiver molded into the flow meter’s body, along with two miniature circuit boards to provide voltage stabilization and automatic IR output level control. The FTB600B automatically compensates IR light intensity for varying fluid opacity levels to insure a strong square wave output signal. The flowmeter is suitable for clear, transparent and translucent fluids which must transmit infrared light. (Note: Not suitable for use with red liquids).

The design of the FTB600B inherently bleeds off entrained gas, thereby improving overall accuracy. This flowmeter can be easily mounted into any position for greater system design flexibility, also saving time and installation costs. A strainer is included in models FTB602B through FT606B.

SPECIFICATIONS
Accuracy: ±1% of reading
Repeatability: ±0.1% of reading
Viscosity Range: 1 to 15 centistokes
Maximum Pressure: 150 psig at 79°C (175°F)
Max Pressure Drop @ Max Flow: 30 psi on all units (6.5 psi on FTB601)
Ambient Temperature: -40 to 85°C (-40 to 185°F)
Wetted Parts: PVDF (Polyvinyldenefloride), FKM O-rings (O-rings are not wetted on NPT units)
Power Supply: 8 to 24 Vdc, 6 to 33 mA
Output Signal: Square wave pulse
Cable Length: .9 m (3 ft)

Model No.	Flow Range (LPM)	Dimensions, mm (in)			K Factor Pulses/L	“-T” Option
Model No.	Flow Range (LPM)	Fitting Length A	Overall Length, L	Barb OD, C	K Factor Pulses/L	Fittings	Length mm (in)
FTB601B	0.1 to 2	9 (0.35)	96 (3.8)	6.9 (0.27)	36,000	1/4 NPT	39 (1.5)
FTB602B	0.3 to 9	12 (0.47)	112 (4.4)	9 (0.35)	8,000	1/2 NPT	47 (1.85)
FTB603B	0.5 to 15	12 (0.47)	116 (4.6)	12 (0.47)	3,200	1/2 NPT	47 (1.85)
FTB604B	1 to 30	16 (0.6)	136 (5.4)	16 (0.6)	1,200	3/4 NPT	63 (2.48)
FTB605B	2.5 to 75	16.5 (0.65)	182 (7.2)	19.5 (0.77)	450	1¼ NPT	80 (3.15)
FTB606B	4 to 120	16.5 (0.65)	183 (7.2)	24.5 (0.96)	225	1¼ NPT	80 (3.15)

Flow Range	0.3 to 9 LPM, 0.1 to 2 LPM, 0.5 to 15 LPM, 1 to 30 LPM, 2.5 to 75 LPM, 4 to 120 LPM
Wetted Materials	PVDF, PVDF, FKM
Process Connection Type	NPT Male, Barbed
Process Connection Size	1/2", 1/4", 3/8", 7/16", 5/8", 3/4", 1 1/4", 15/16"
Category	Meter
Media Type	Liquid
Accuracy	±1%
Output Signal	Amplified Square Wave
Max Operating Pressure	150 psi
Max Process Temperature	85 °C (185 °F)
Display	No Display
