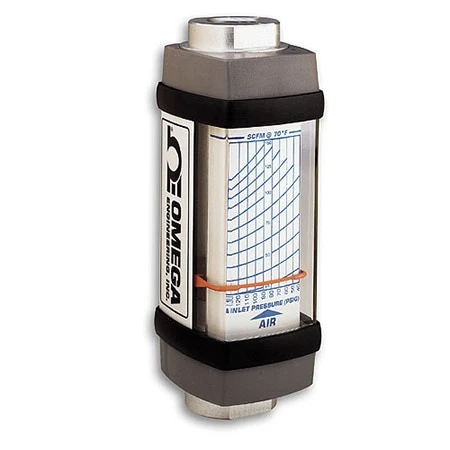

Pneumatic In-line Flowmeters With Multi-pressure Flow Scales

Original price was: $297.85.Current price is: $97.99.

Easily Installs In Any Position
Rugged Anodized Aluminum Body
Multi-Pressure Flow Scale, 40 to 130 psig
±2% FS Accuracy

Gas Flow Range

Process Connection Size

Clear

SKU: FL6911A Categories: Flow Instruments, Flow Meters, Variable Area Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

OMEGA™ multi-pressure pneumatic flowmeters feature a rugged anodized aluminum body design and easy installation. For air/compressed gas applications, these flowmeters include ranges from 5-5.0 SCFM to 100-1000 SCFM, at operating pressures up to 1000 psig. Their multi-pressure scales (from 40-130 psig) mean accurate flow measurements can be made without the need for conversion calculations for pressure variations.

SPECIFICATIONS
Accuracy: ±2% FS
Repeatability: ±1%
Materials: Anodized aluminum body with dichromate sealed anodized aluminum cone and piston, 302 SS spring, and polyphenylene sulfide/ceramic magnet
Temperature Rating: 116°C (240°F) maximum
Pressure Rating: 69 bar (1000 psig) maximum
Size/Shipping Weight:
   1/2 NPT: 567 g (1.25 lb)
   3/4 NPT: 0.9 kg (2 lb)
   1-1/4 NPT: 3.3 kg (7.3 lb)
Dimensions:
   1/2 NPT: 61 x 53 x 168 mm (2.4 x 2.1 x 6.6″)
   3/4 NPT: 74 x 64 x 183 mm (2.9 x 2.5 x 7.2″)
   1-1/4 NPT: 119 x 104 x 310 mm (4.7 x 4.1 x 12.2″)

Gas Flow Range	10 to 100 SCFM, 15 to 150 SCFM, 3 to 25 SCFM, 5 to 50 SCFM, 25 to 250 SCFM, 100 to 1,000 SCFM, 20 to 200 SCFM, 40 to 400 SCFM, 60 to 600 SCFM, 80 to 800 SCFM
Process Connection Size	1/2", 3/4", 1 1/4"
Category	Meter
Media Type	Air
Liquid Flow Range
Accuracy	±2%
Process Connection Type	NPT Female
Wetted Materials	302 SS, Aluminum, Polyphenylene Sulfide, Ceramic
Max Operating Pressure	1,000 psi
Max Process Temperature	116 °C (240 °F)
Scale	Direct Read
Valve Included	No
