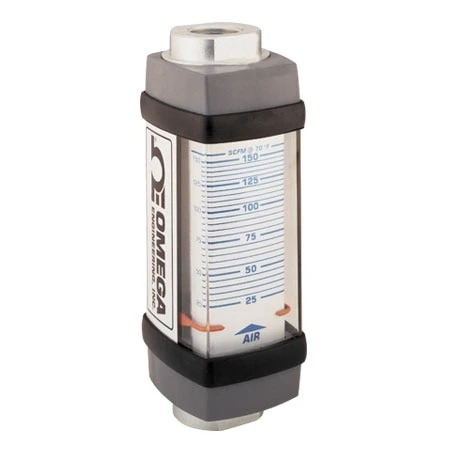

Pneumatic In-Line Variable Area Flow Meters
Original price was: $310.04.$98.99Current price is: $98.99.
- ±2% Full Scale Accuracy*
- ±1% Repeatability
- 1000 psig Pressure Rating
- Calibrated to Read in SCFM @ 100 psig
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
This rugged direct-reading flowmeter monitors air flow rates to determine optimum performance, flow regulator settings, or pneumatic system performance. It is intended for use in mobile or industrial pneumatic systems as well as air power-operated hand tool systems.
These flowmeters feature direct reading scales for air flow and are available in a wide variety of flow ranges.
SPECIFICATIONS
Materials: Anodized aluminum body with dichromate sealed anodized aluminum cone and piston, 302 SS spring, and polyphenylene sulfide/ceramic magnet
Size/Shipping Weight:
    1/2 NPT: 0.57 kg (1.25 lb)
    3/4 NPT: 0.9 kg (2 lb)
    1-1/4 NPT: 3.3 kg (7.3 lb)
Dimensions:
    1/2 NPT: 60.96 x 53.34 x 167.64 mm (2.4 x 2.1 x 6.6″)
    3/4 NPT: 73.66 x 63.5 x 182.88 mm (2.9 x 2.5 x 7.2″)
    1-1/4 NPT: 119.38 x 104.14 x 309.88 mm (4.7 x 4.1 x 12.2″)
Max Temperature: 116°C (240°F)
Pressure Drop: please refer to the specification sheet for complete details
| Gas Flow Range | 5 to 50 SCFM, 10 to 100 SCFM, 15 to 150 SCFM, 25 to 250 SCFM, 100 to 1,000 SCFM, 40 to 400 SCFM, 60 to 600 SCFM, 80 to 800 SCFM |
|---|---|
| Process Connection Size | 1/2", 3/4", 1 1/4" |
| Category | Meter |
| Media Type | Air |
| Liquid Flow Range | |
| Accuracy | ±2% |
| Process Connection Type | NPT Female |
| Wetted Materials | 302 SS, Aluminum, Polyphenylene Sulfide, Ceramic |
| Max Operating Pressure | 1,000 psi |
| Max Process Temperature | 116 °C (240 °F) |
| Scale | Direct Read |
| Valve Included | No |
