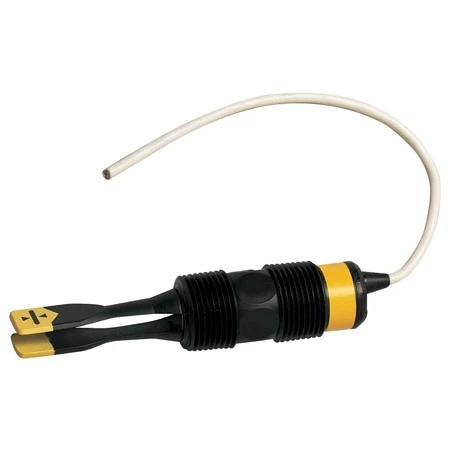

Polyphenylene Sulfide, NO Or NC Tuning Fork Level Switch

Original price was: $312.00.Current price is: $98.99.

All Plastic Design Works in a Wide Variety of Applications
Not Bothered by Foam or Bubbles
SPST Relay Standard
Excellent for Use in Food, Pharmaceutical, and Wastewater Applications

SKU: LTU-101A-G-R Categories: Control & Monitoring, Level Switches, Process Switches Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The LTU-101A-R consists of a sensor with dual tuning forks which are vibrated at a high frequency. As the tuning fork is progressively covered by a liquid, a shift in frequency occurs which activates the relay output. The tuning fork sensor is often used in conditions where there may be frequent composition changes in the liquid. Factory calibration ensures accuracy over a wide range of liquids, including lubricating oils and hydraulic fluids.

Specifications
Accuracy: ±1 mm (0.04″) in water
Repeatability: ±0.5 mm (0.02″) in water
Frequency: 400 Hz
Supply Voltage: 12 to 28 Vdc
Consumption: 25 mA maximum
Relay: 60 VA, 1 A maximum
Switch Output: SPST Selectable NO or NC states
Temperature Range: -40 to 80°C (-40 to 176°F)
Pressure Range: 150 psi (10 bar) @ 25°C (76°F); derated @ 1.667 psi (0.113 bar) per °C above 25°C (76°F)(br) Probe Material: Ryton®
Probe Rating: NEMA 6 (IP68)
Mounting Threads: ¾ NPT
Cable Type: 3 m (10′), 5-wire, shield and PP jacket
Max. Cable Run: 305 m (1000′)
Dimensions: 114 x 27 mm (4.5 x 1.05″), ¾ NPT or ¾ G

Process Connection Type	BSP Male, NPT Male
Media Type	Liquid
Max Operating Pressure	150 psi
Max Process Temperature	80 °C (176 °F)
Wetted Materials	Ryton
Process Connection Size	3/4"
Supply Power	12 to 28 Vdc
Switch Rating and Type	1 A SPST
Probe Length	4 1/2"
Features	Switch Type Selectable, NO or NC
