Sale!

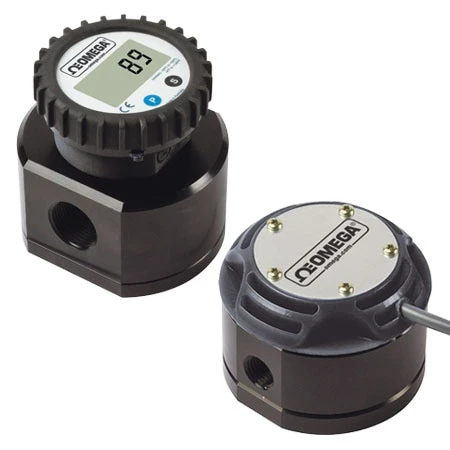

Positive Displacement Flow Meter For Solvents

Original price was: $323.00.Current price is: $96.99.

Aluminum Body
FEP Seals
Stainless Steel Rotors
Temperatures up to 80ºC (176ºF)

Flow Range

Output Signal

Max Operating Pressure

Process Connection Size

Display

Supply Power

Clear

SKU: FPD3305 Categories: Flow Instruments, Flow Meters, Positive Displacement Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The FPD3300 Series positive displacement flowmeters are affordable and accurate. One primary feature is the ability to maintain consistent accuracy despite changing viscosity conditions. The meter’s solid construction and excellent dynamic response are well suited to the measurement of many solvents as well as other non-abrasive lubricating fluids. Since there is no need for straight run piping upstream or downstream of the flowmeter, the FPD3300 flowmeters are simple to use and to install. The meter has good resolution and high accuracy at low flow rates.

Flow Range	1.6 to 32 GPM, 0.13 to 26 GPH, 4 to 132 GPH, 0.5 to 8 GPM, 2.6 to 66 GPM, 4 to 130 GPM, 5.3 to 193 GPM, 30 to 300 GPM, 0.8 to 21 GPM
Output Signal	Amplified Square Wave, Not Applicable, 4 to 20 mA
Max Operating Pressure	2,000 psi, 1,000 psi, 1,200 psi, 175 psi
Process Connection Size	1", 1/4", 1/2", 1 1/2", 2", 3", 4", 3/4"
Display	No Display, LCD
Supply Power	4.5 to 24 Vdc, Lithium Battery 3 Vdc, 18 to 30 Vdc
Category	Meter
Accuracy	± 0.5%
Max Process Temperature	80 °C (176 °F)
Wetted Materials	SS, FEP
Process Connection Type	NPT Female
Features	1 to 1,000 cPs
