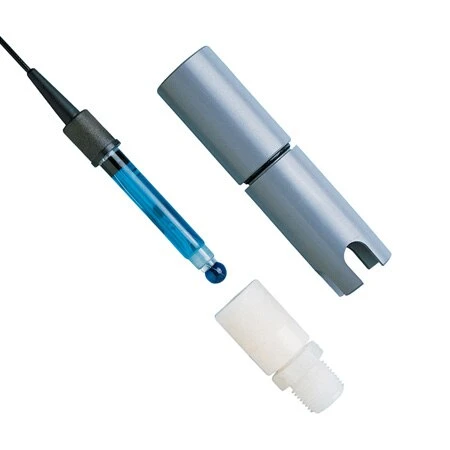

Preamplified Alpha® PH Electrodes

Original price was: $118.41.Current price is: $82.89.

16 Month Shelf Life
Interfaces Directly with Most Instrumentation that Accepts mV Input Signal
Signal can be Run Up to 305 m (1000′)
Power Supply Available in Three Styles

Range

Wetted Materials

Max Temperature

Process Connection Type

Process Connection Size

Features

Clear

SKU: PHE-1304-NB Categories: Air, Soil, Liquid, and Gas, Control & Monitoring, Water Quality Sensors Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

OMEGA Engineering offers pH electrodes with integral preamplifiers for laboratory or industrial applications. These electrodes can interface directly with equipment that accepts a millivolt input signal with a 10 k½ or greater input impedance, such as a data acquisition interface or multimeter. The preamplifier converts the high impedance millivolt signal of the electrode into a low impedance signal, enabling the signal to be run up to 305 m (1000′) without signal loss. The electrode is supplied with 1 to 3 m (3 to 10′) of coaxial cable, depending on the model. If longer cable lengths are required, simply splice on extension cable.

These preamplified electrodes are available in a variety of styles and can interface with any pH meter, controller, transmitter, multimeter or data acquisition system with a one-to-one unity gain.

The preamplified power option comes in styles: an encapsulated battery design, suffix “-PB”, an external battery style, suffix “-EB”, and a style for use with an external dc power source, “-NB”.
To order a preamplified electrode see the To Order guide below.

Model No.	Description
PHE-1304-(*)	Combination gel-filled, epoxy-bodied, general purpose laboratory pH electrode. pH range 0 to 12, temp. 0 to 80°C (32 to 176°F).
PHE-2114-(*)	Combination general purpose, large bulb, refillable glass pH electrode. pH range 0 to 13, temp. 0 to 100°C (32 to 212).
PHE-5311-10-(*)	Industrial in-line combination, general purpose, gel filled, pH electrode, Kynar housing, 1/2″ MNPT threading, insertion length 1″. 10′ of cable standard. pH range 0 to 13, temp. range -5 to 100°C. (23 to 212°F). Dimensions: 127 x 25 mm (5 x 1″).
PHE-5411-10-(*)	Industrial in-line combination double junction electrode. MNPT threading, insertion length 1″. 10′ of cable standard. pH range 0 to 13, temp. range -5 to 100°C (23 to 212°F). Dimensions: 127 x 25 mm (5 x 1″).
PHE-5316-10-(*)	Industrial in-line combination, general purpose, gel-filled, pH electrode, CPCV housing, 3/4″ MNPT threading, 2″ insertion length. 10′ cable standard. pH range 0 to 13, temp. range -5 to 80°C (23 to 176°F). Dimensions: 168 x 25 mm (6.6 x 1″).
PHE-6351-10-(*)	Industrial submersible, combination, general purpose, gel-filled, pH electrode. Electrode potted in 36″ ABS pipe. 10′ cable standard. pH range 0 to 13, temp. range 0 to 80°C (32 to 176°F). Dimensions: 28 x 914 mm (1.1 x 36″).
PHE-6451-10-(*)	Industrial submersible, combination, double junction, gel-filled, pH electrode. Electrode potted in 36″ ABS pipe. 10′ cable standard. pH range 0 to 13, temp. range 0 to 80°C (32 to 176°F). Dimensions: 28 x 914 mm (1.1 x 36″).

Range	0 to 12 pH, 0 to 13 pH
Wetted Materials	Epoxy, PVDF, CPVC, Not Applicable, ABS
Max Temperature	80 °C (176 °F), 100 °C (212 °F)
Process Connection Type	Not Applicable, NPT Male
Process Connection Size	Not Applicable, 1/2", 3/4"
Features	External DC Power Supply ±1.5 to 9 Vdc, Replaceable external battery pack, Not Applicable, 1000 Ω Platinum RTD ATC, 100 Ω Platinum RTD ATC, Standard, double Junction
Measurement Type	pH
