Precision Thermistor Sensors & Probes
Original price was: $124.72.$87.30Current price is: $87.30.
- Precision Thermistor
- Various Styles to Meet Numerous Applications
- Phone-Plug Connector Standard
- 2252 Ohm @ 25 Degrees C
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
OMEGA ENGINEERING Series “400” probes are for use in laboratory and R&D applications and have
interchangeable sensor accuracy of ±0.1°C. Each sensor is supplied with a 10-foot vinyl cable and
phone-plug connector. The Series “400” probes are 2252 Ohm @ 25°C.
interchangeable sensor accuracy of ±0.1°C. Each sensor is supplied with a 10-foot vinyl cable and
phone-plug connector. The Series “400” probes are 2252 Ohm @ 25°C.
| Configuration Dimensions in mm (“) | Model Number | Description | Temp. Rating | Application |
 | ON-401-PP | General Purpose. Used for short-term water and sub-soil readings. Most rugged, waterproof construction. | 100°C (212°F) | Buried |
 | ON-401-PP-V | Water resistant, soft, flexible, vinyl tipped version of above model. | ||
 | ON-402-PP | Small Flexible. Vinyl sheath and tip. Cuvette temperatures. General purpose measurement. Continuous length. | 100°C (212°F) | General Purpose |

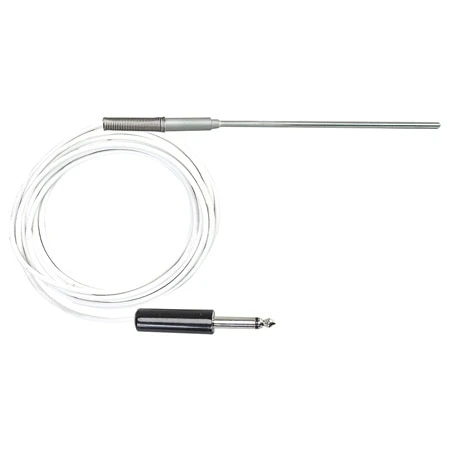

 | ON-403-PP | Tubular. Stainless steel probe for rugged duty. Often used for liquid immersion. Probe is immersible only to cap. | 100°C (212°F) | Liquid |
 | ON-404-PP | Tubular-Glass. Chemically inert for liquid immersion use. Thermometric titration. Freezing point determination. Pyrex, 127 mm (5″) long. | 100°C (212°F) | Liquid |
 | ON-405-PP | Air Temperature. Stainless steel probe suitable for test rooms, incubators, remote air readings, monitoring of gas streams, etc. | 100°C (212°F) | Gas |
| ON-406-PP | Same as ON-405-PP but with economical plastic housing. | |||
 | ON-408-PP | “Banjo” Surface Temperature. Skin, oral, axillary, water bath, air, surfaces temperatures. Stainless steel. | 100°C (212°F) | Surface |
 | ON-409-PP | Attachable Surface Temperature. Stainless steel cup, epoxy-backed. Easy to tape on flat surfaces. Good for heat loss or compression efficiency study of piping. | 100°C (212°F) | Surface |
 | ON-410-PP | Tubular With Fitting. Rugged, stainless steel probe with pipe fitting.Suitable for taking readings in pipes or inside closed vessels. | 100°C (212°F) | Gas, Liquid |
| Sensor Application | Immersion Probe, Air Probe, Attachable Surface Temperature |
|---|---|
| Sheath Material | Stainless Steel, Plastic |
| Probe Diameter | 0.125 in, 0.500 in, Not Applicable |
| Probe Length | 4.50 in, 1.25 in, Not Applicable |
| Category | Thermistor |
| Process Temperature Unit | °C |
| Process Temperature Min | 0 |
| Process Temperature Max | 100 |
| Process Temperature Range | 0 to 100°C (32 to 212°F) |
| Accuracy | ±0.1°C |
| Nominal Resistance | 2252 Ω |
| Cable Insulation | PVC |
| Cable Length | 120 in |
| Termination Connection Type | Phone Plug |
