Sale!

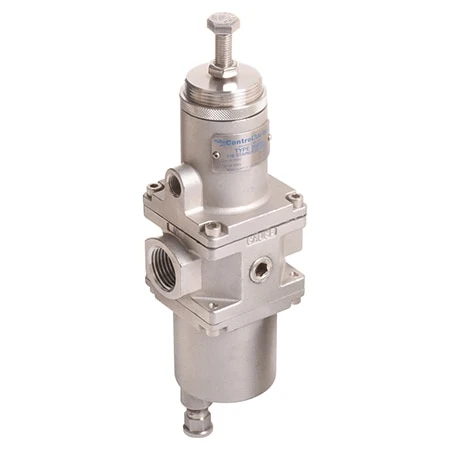

Pressure Regulators For Corrosive Media And Harsh Environments

Original price was: $385.00.Current price is: $99.99.

All 316 SS Construction
High Flow Capacity
Tapped Exhaust Port for Remote Venting
Minimal Air Consumption

Pressure Range

Pressure Port Size

Clear

SKU: PRG352A-100 Categories: Control & Monitoring, Controllers, Pressure Regulators Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The PRG350A series of stainless steel filter regulators are designed to stand up to the harshest environments while providing highly accurate pressure regulation. Proven 316 stainless steel housing and filter assemblies along with fluorocarbon elastomers make the PRG350A compatible with sour gas and adaptable to off shore environments.

SPECIFICATIONS
Exhaust Capacity: 1.0 scfm (1.7 m3/hr) (outlet pressure 10 psig above set point)
Air Consumption: 4 scfh (0.1 m3/hr) max
Maximum Supply Pressure: 290 psig (20.0 bar)
Operating Temperatures: -20° to +185°F (-29°C to +85°C)
Filter: 25 micron
Porting:
    Inlet/Outlet: 1/4 NPT or 1/2 NPT
    Gauge (2): 1/4 NPT
    Exhaust: 1/8 NPT
Materials: Meets NACE #MR-0175 material requirement for sulfide stress cracking 316L stainless steel: housings 316 stainless steel: filter, range spring, trim Inconel: valve spring
Fluorocarbon: diaphragm, seals Silicone: diaphragm, seals (low temperature option)
    Body, Bonnet, Filter: AISI 316 stainless steel
    Diaphragm Seals: Fluorocarbon
    Range Spring, Pintle Spring: Inconel
Weight:
    PRG352A: 2.9 lbs. (1.3 kg)
    PRG354A: 2.2 lbs. (1.0 kg)

Pressure Range	0 to 100 psig, 0 to 150 psig, 0 to 30 psig, 0 to 60 psig
Pressure Port Size	1/2", 1/4"
Maximum Inlet Pressure	290 psig
Pressure Port Type	NPT Female
Media Type	Corrosive
Features	Rated for Using Harsh Enviornments
