Pressure Regulators For Inert Gases – Primary And Secondary Pressure Regulation For High And Low Pressure Systems

The R44 series has been discontinued. Please contact our Flow Engineering department for a viable replacement.

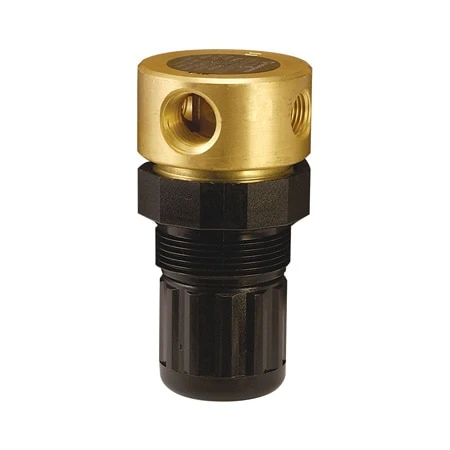

The R44 Series are UL listed (file number SA1089) industrial pressure regulators for use with compressed air and inert gases such as carbon dioxide, argon helium, krypton, neon nitrogen and xenon. The R83 models are for primary high pressure regulation, while the R44 models are for secondary low pressure regulation. These regulators are intended for industrial use and are not to be used for beverage dispensing applications.

SPECIFICATIONS

R44 Models with ¼ ports, reducer bushings available for 1/8′ ports
Operating Temperature: -34 to 66°C (-30 to 150°F)
Maximum Inlet Pressure: 17 bar (250 psig)
Pressure Drop: 15 psi at 150 psi inlet and 90 psi output
Flow: 4.7dm³/s (10 scfm)
Materials R44:
    R44-221: Brass body; acetal plastic bonnet
    R44-233: Brass body, brass bonnet
Valve: Brass/nitrile
Seat: Acetal
Elastomers: Nitrile

R83 Models with ¼ ports, reducer bushings available for 1/8′ ports
Operating Temperature: -34 to 60°C (-30 to 140°F)
Maximum Inlet Pressure: 207 bar (3000 psig)
Pressure Drop: 0.35 bar (5 psig) at 69 bar (1000 psig) inlet and 4 bar(60 psig) output
Flow: 5.2dm³/s (11 scfm)
Materials R88: Brass body, zinc bonnet
Cartridge Valve: PTFE, brass, stainless steel
Diaphram: Acetal/nitrile
Seals: Nitrile
