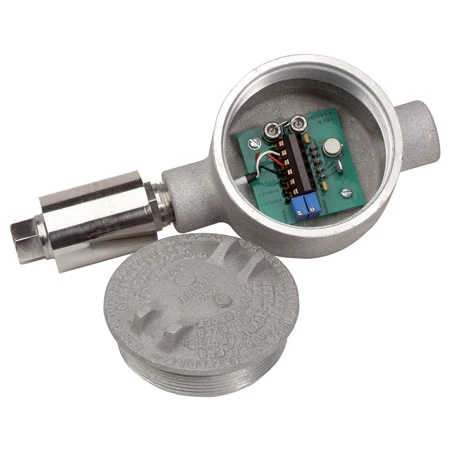

Pressure Transducers With Internal Shunt Resistor

Original price was: $310.00.Current price is: $99.99.

Internal Shunt Resistor for Easy System Checks
All Stainless Steel Construction
5 Point NIST Traceable Calibration
Hermetically Sealed Double Diaphragm Design for Harsh Environments

Pressure Range

Pressure Type

Accuracy Class

Accuracy Value(compensated range)

Output Signal

Electrical output

Pressure Port Size

Pressure Port Type

Connection/Termination

Operating Temperature Range

Additional Features

Clear

SKU: PX02C0-5KG5T Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Description

OMEGA’s PX02 Series is a high accuracy, amplified voltage output, industrial pressure transducer. All stainless steel construction and a hermetically sealed case makes the PX02 suitable for harsh industrial environments. It is a true high accuracy industrial device. A broad temperature compensated range of 16 to 71°C (60-160°F) and excellent temperature compensation make this transducer very stable with fluctuating temperatures. The PX02 is available in gage, absolute or sealed models as well as PSI or metric ranges. NPT and 7/16-20 O-ring seal fittings are available for industrial and hydraulic applications.

The PX02 is also available in metric configurations, with G1/4 or G1/8 ports, and models from 0-160 mbar to 0-400 bar pressure ranges. Please see the PXM02 for complete details, or contact our Pressure department for more information.

Consult sales for units available with Inconel construction.

Pressure Range	0 to 5000 psi, 0 to 15 psi, 0 to 20 psi, 0 to 50 psi, 0 to 75 psi, 0 to 100 psi, 16 to 32 inHg, 0 to 1000 psi, 0 to 200 psi, 26 to 32 inHg, 0 to 2,000 psi, 0 to 300 psi, 0 to 3500 psi, 0 to 500 psi, 0 to 7,500 psi, 0 to 2 psi, 0 to 5 psi, 0 to 10 psi, 0 to 25 psi, 0 to 150 psi, 0 to 1500 psi, 0 to 250 psi, 28 to 32 inHg, 0 to 3,000 psi, 0 to 750 psi, 0 to 2500 psi, 0 to 10000 psi, 0 to 150 inH2O, 0 to 200 bar, 0 to 20,000 psi, 0 to 300 inH2O, 0 to 30,000 psi, 0 to 40,000 psi, 0 to 15,000 psi, 0 to 400 bar, 0 to 6 bar, 0 to 10 bar, 0 to 40 bar, 0 to 60 bar, 0 to 100 bar, 0 to 250 bar, 541 to 1,084 mbar, 880 to 1,084 mbar, 948 to 1,084 mbar
Pressure Type	Gauge, Absolute, Barometric, Sealed Gauge
Accuracy Class	0.1% to 0.25%, < 0.1%
Accuracy Value(compensated range)	±0.19%, ±0.09%
Output Signal	Voltage, Current, Ratiometric mV/V, Isolated Voltage
Electrical output	0 to 5 Vdc, 4 to 20 mA, 0 to 10 Vdc, 3 mV/V
Pressure Port Size	1/4", 7/16"
Pressure Port Type	NPT Male, NPT Female, UNF Male, UNF Female, High Pressure F-250-C, BSPP Male, BSPP Female
Connection/Termination	Cable, MIL-26482-I 10-6P, Conduit, Mini DIN 43650 C
Operating Temperature Range	-46 to 121 °C (-50 to 250 °F), -73 to 163 °C (-100 to 325 °F)
Additional Features	Not Applicable, Mounting Bracket, Cleaned for oxygen service, Overload Stop, Lightening Protected Amplifier Box, 14 ft Cable
