Pressure Transducers With Premium Temperature Compensation

Original price was: $316.00.Current price is: $96.99.

Absolute and Gage Pressure, 15 to 30,000 psi
Premium Temperature Compensation
All Stainless Steel Construction
Hermetically Sealed for Harsh Environments

Pressure Range

Pressure Type

Pressure Port Type

Operating Temperature Range

Clear

SKU: PX35C1-050AV Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

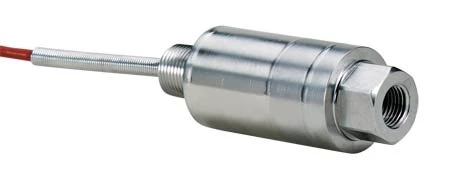

OMEGA’s PX35 is a high-accuracy, millivolt output, industrial pressure transducer. It can be ordered with a hermetically sealed gage, making it suitable for the harshest environments. The PX35 is available in gage, sealed gage, and absolute models. Three meters (10′) of 4-conductor shielded cable is standard. A twist-lock-connector electrical termination is also available.

SPECIFICATIONS
Excitation: 10 Vdc (15 V max)
Output: 3 mV/V nominal
Accuracy: 0.25% linearity, hysteresis and repeatability combined
Zero Balance:±2.0% FSO
Input Resistance: 350 Ω min
Output Resistance: 315 to 530 Ω
Operating Temp Range: -73 to 149°C (-100 to 300°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Span: 0.003% rdg/°F
Zero: 0.004% FSO/°F
Proof Pressure: 150% of rated pressure
Burst Pressure: 300% of rated pressure
Wetted Parts: 17-4 PH stainless steel
Pressure Port:
<10,000 psi: ¼-18 NPT internal
≤10,000 psi: ⁹⁄16-18, ¼’ HP tube
Electrical Connection: 3 m (10′) 4-conductor cable

Pressure Range	0 to 50 psi, 0 to 40 bar
Pressure Type	Absolute, Gauge
Pressure Port Type	NPT Male, BSPP Female
Operating Temperature Range	-73 to 149 °C (-100 to 300 °F), -73 to 149°C (-100 to 300 °F)
Accuracy Class	0.1% to 0.25%
Accuracy Value(compensated range)	±0.25%
Output Signal	Ratiometric mV/V
Electrical output	3 mV/V
Pressure Port Size	1/4"
Connection/Termination	MIL-26482-I 10-6P
Additional Features	Not Applicable
