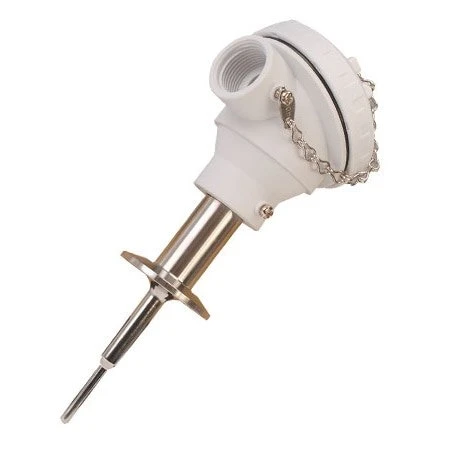

Protection Head Thermocouples Type T, J & K 3-A Sanitary Probe

Original price was: $266.86.Current price is: $98.99.

3-A Approved Design, Combined with a Mounting Flange Meeting the Requiremnets of ASME-BPE-2007, Assures Trouble-Free Cleanability and Interchangeability
Sensor Can Be Used in Sanitary, Hygienic and Clean-In-Place Food, Dairy, Beverage and BioPharmaceutical Processes
Process Connection is a 1½’ 16AMP Tri-Grip™ (Tri-Clamp® Compatible) Conforming to ASME BPE-2007, Other Cap Sizes and Styles are Available
Wetted Surfaces are 316L Stainless Steel, Surface Finish = 32 Microinch or Better

Thermocouple Type

Process Connection Type

Probe Diameter

Probe Length

Termination Connection Type

Clear

SKU: TCS-JU-H-0300-E1-NB9W Categories: Sanitary Probes, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The 3-A Approved OMEGA™ THS-S-NB9W and THS-H-NB9W Series Thermistor Sensors are designed for use in Sanitary or Hygienic Clean-in-Place applications in the Food, Dairy, Beverage and BioPharmaceutical industries. These sensors are manufactured with 316L stainless steel housings that meet the dimensional requirements of ASME BPE-2007 and 3-A Specification 74-05, and are welded and processed to provide a clean, smooth, 32 µinch or better surface finish in the wetted areas for easy cleaning.

In addition to the standard 1½-16AMP process connection, these can be provided in the following sizes and styles:

Process Connection	Model Number Code
3/4″-16AMP	-B1-
1″ and 1½”-16AMP	-D1-
2″-16AMP	-E1-
2½”-16AMP	-F1-
3″-16AMP	-G1-
4″-16AMP	-H1-

If you need a process connection that is not listed above, please contact our sales department for availability.

The probe stems are manufactured in two configurations; a standard ¼” diameter probe for standard duty service, and a stepped 3/8″ to 3/16″ probe design for good response times in heavy duty applications.

This sensor is available with either a white polypropylene screw-top connection head (NB9W) or a stainless steel screw top connectoion head (NB15) for connection to your process instrumentation. These sensors are also available in RTD and Thermocouple styles to accommodate any process input requirement. In addition to the standard 1½-16AMP flange design, this sensor can be provided in a wide variety of flange sizes and styles. If you need something a little (or a lot) different, we can accommodate your needs.

This sensor is stocked with the 10,000 ? thermistor standard, but is available in any of the following resistances:

Sensor Code	Resistance @ 25°C	Element Series
2K	2252 ?	44004
3K	3000 ?	44005
5K	5000 ?	44007
10K	10,000 ?	44006
30K	30,000 ?	44008

Thermocouple Type	J, K, T
Process Connection Type	2" Tri-Clamp, 1.5" Tri-Clamp, 0.75" Tri-Clamp, 3" Tri-Clamp
Probe Diameter	0.375 in to 0.187 in reduced tip, 0.25 in
Probe Length	3 in, 4 in, 5 in, 6 in
Termination Connection Type	White Polypropylene Connection Head, 316 Stainless Steel Connection Head
Category	Thermocouple
Process Temperature Range	-50 to 200°C (-58 to 392°F)
Sensor Application	Immersion Probe
Sheath Material	316 Stainless Steel
Junction Type	Ungrounded
