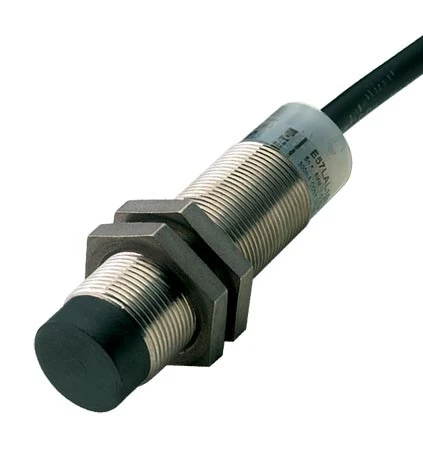

Proximity Sensors With LED Indicator, Sensing Range – 2mm To 15mm
Original price was: $185.35.$96.99Current price is: $96.99.
- 2-Wire, 3-Wire, DC, and AC/DC Multiple Range Sensor Models
- Manufactured to Take Physical and Environmental Abuse
- Designed with Stainless Steel Barrel and New Potting Compound for Robust, High Temperature, High Pressure Washdown, as Well as Intense Shock and Vibration Applications
- Unmatched High Noise Immunity Eliminates Problems Associated with Electrical Noise (All Models20V/Meter)
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
The Cutler-Hammer® Premium+ Series inductive proximity sensors have improved sensing performance, product durability and selection. This improved line of sensors carries the Premium+ Series name because we have upgraded the design to a rugged stainless steel body, shock resistant front caps and impact absorbing potting compound. Also, the Premium+ Series line now includes a choice of AC/DC and DC-only, 12, 18 and 30 mm sensors with unmatched noise immunity of greater than 20V/meter.
SPECIFICATIONS
E57 PREMIUM+ SERIES
| 2-WIRE SENSORS AC/DC | 3-WIRE DC SENSORS | |
|---|---|---|
| Operating Voltage | 40 to 250 Vac/20 to 250 Vdc | 6 to 48 Vdc |
| Maximum Load Current | 250 mA @ 25°C 200 mA @ 70°C | 500 mA @ 6 to 30 Vdc |
| Switching Frequency | 60 Hz | 12 mm: 1000 Hz; 18 mm: 800 Hz; 30 mm: 500 Hz |
| Leakage Current | ≤2.0 mA | ≤100 µA |
| Voltage Drop | ≤12V @ <10mA ≤4V @ > 25mA | ≤2.5V |
| Holding Current | 5 mA min | – |
| Burden Current | – | ≤10 mA |
| Protection | Resettable short circuit overload protection | Auto reset |
| Switching Hysteresis | <15% rated sensing distance | |
| Repeat Accuracy | Shielded Models: <1% sensing distance; Unshielded and extended range: <3% | |
| Time Delay Before Availability | <200 mS | |
| COMMON SPECIFICATIONS | ||
| Output Indicator LED | 360° viewable LED | |
| Operating Temperature | -25 to 70°C (-13 to 158°F) | |
| Enclosure Ratings | NEMA 4, 4X, 6, 6P, 12 and 13 (IP67) | |
| Shock | 30g, 11 mS per IEC 68-2-76 | |
| Vibration | 10 to 55 Hz, 1 mm amplitude | |
| Housing Material | Stainless steel; Polcarbonate end bells; Ryton® front ends | |
| Sensor Type | 2-Wire, N.O. Output, 3-Wire, N.O. Output, NPN, 3-Wire, N.O. Output, PNP |
|---|---|
| Sensing Range | 15 mm, 2 mm, 4 mm, 8 mm, 5 mm, 10 mm |
| Supply Voltage | 24 to 240 Vac, 20 to 240 Vdc, 6 to 48 Vdc |
| Shielding | Unshielded, Shielded |
| Connection Type | 3-Pin Micro AC Connector, 4-Pin Micro DC Connector, 2 m Cable |
| Diameter | 30 mm, 12 mm, 18 mm |
