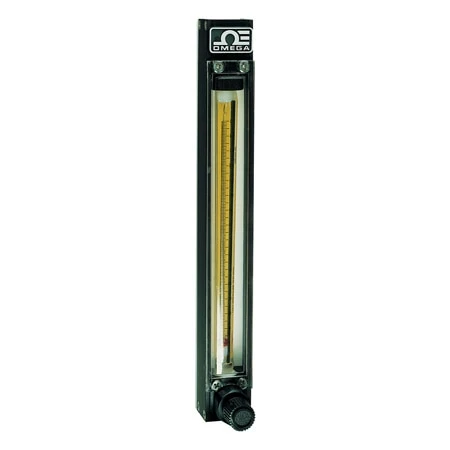

PTFE Variable Area Flow Meters With PTFE Valves

Original price was: $392.00.Current price is: $99.99.

Excellent Chemical Compatibility for Use with Corrosive or Ultra-Pure Fluids
±2% of Full Scale Accuracy
Shield Magnifies Scale for Accurate Readings

Gas Flow Range

Liquid Flow Range

Accuracy

Scale

Clear

SKU: FL-3139SA Categories: Flow Instruments, Flow Meters, Variable Area Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The FL-3000 and FL-3100 Series flowmeters are designed for applications which involve corrosive or ultra-pure fluids. The meters are equipped with built-in PTFE needle valves with PCTFE, borosilicate glass, sapphire, and Perfluoroelastomer O-rings.

The special scale design, where a vertical line runs up the length of the scale and intersects the horizontal scale divisions, reduces parallax and eye fatigue, thus insuring high accuracy readings. The front polycarbonate resin shield also acts as a magnifying glass, all of which makes these Variable Area Flow Meters, far easier to read than standard industrial designs.

SPECIFICATIONS
Accuracy: ±2% FS (±5% FS for models FL-3007SA and FL-3145SA)
Repeatability: ±0.25% FS
Max. Pressure: 100 psig
Max. Temperature: 66°C (150°F)
Connections: 1/8 FNPT
Mounting: Panel mount or optional tripod base
Height/Center to Center Port Distance: 65 mm (6.156’/5.156′); 150 mm (10.469’/9.469′)

65 mm Models

Model No.	*Max Flow Rate (cc/min)**
Model No.	Air	Water*
FL-3007SA	8.3	.251
FL-3035SA	72.3	0.98
FL-3013SA	159	3.00
FL-3010SA	299	4.7
FL-3051SA††	1399	33.3
FL-3092SA	1623	36.74
FL-3088SA	2704	61
FL-3096SA	8144	217
FL-3063SA	28,326	798

150 mm Models

Model No.	*Max Flow Rate (cc/min)**
Model No.	Air	Water*
FL-3145SA	37	.56
FL-3141SA	72	0.99
FL-3161SA	140	1.92
FL-3102SA	513	9.96
FL-3103SA	1092	26.1
FL-3104SA	3079	78
FL-3105SA	5000	126
FL-3139SA	11,887	315
FL-3140SA	29,364	829

*Minimum flow rate is 10% of maximum rate shown.

Gas Flow Range	1188.7 to 11,887 SCCM, 0.83 to 8.3 SCCM, 29.9 to 299 SCCM, 15.9 to 159 SCCM, 7.23 to 72.3 SCCM, 139.9 to 1,399 SCCM, 2832.6 to 28,326 SCCM, 270.4 to 2,704 SCCM, 162.3 to 1,623 SCCM, 814.4 to 8,144 SCCM, 51.3 to 513 SCCM, 109.2 to 1,092 SCCM, 307.9 to 3,079 SCCM, 500 to 5,000 SCCM, 2936.4 to 29,364 SCCM, 7.2 to 72 SCCM, 14 to 140 SCCM
Liquid Flow Range	31.5 to 315 SCCM, 0.0251 to 0.251 SCCM, 0.47 to 4.7 SCCM, 0.3 to 3 SCCM, 0.098 to 0.98 SCCM, 3.33 to 33.3 SCCM, 79.8 to 798 SCCM, 6.1 to 61 SCCM, 3.674 to 36.74 SCCM, 21.7 to 217 SCCM, 0.996 to 9.96 SCCM, 2.61 to 26.1 SCCM, 7.8 to 78 SCCM, 12.6 to 126 SCCM, 82.9 to 829 SCCM, 0.099 to 0.99 SCCM, 0.192 to 1.92 SCCM
Accuracy	±2%, ±5%
Scale	0 to 150, 0 to 65
Category	Meter
Media Type	Air, Water
Process Connection Type	NPT Female
Process Connection Size	1/8"
Wetted Materials	PTFE, KEL-F, Glass, Sapphire, Perflurorodastomer
Max Operating Pressure	100 psi
Max Process Temperature	65 °C (150 °F)
Valve Included	Yes
Features	Panel Mount
