Pump Up/Pump Down Level Control Switches

Original price was: $78.69.Current price is: $55.08.

Use One Switch for Differential or Hi/Lo Control
Adjustable Level Differential from 6″ to Over 100′
Case and Cable Hermetically Sealed by Plastic Injection Molding

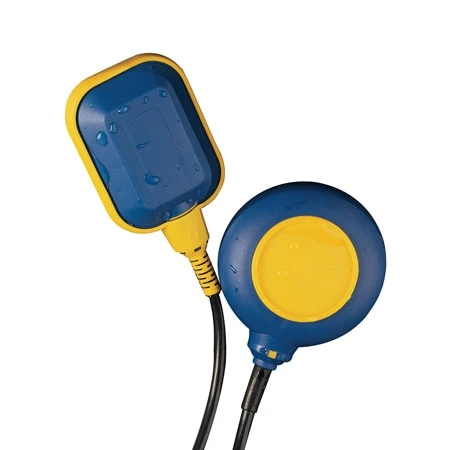

Circular and Rectangular Designs

Wetted Materials

Features

Clear

SKU: LV612-P Categories: Control & Monitoring, Level Switches, Process Switches Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The LV600 Series unique float level switches provide an economical means of pump-up/pump-down level control with just one level switch. The ON/OFF differential is set by adjusting the length of cable over which the LV600 is allowed to float. Depending on whether the LV600 is floating with the cable UP or DOWN (see drawing), the 15 amp relay is on or off. The relay changes state when the LV600 is above or below the fixed point by 80% of the cable length. For example, if the cable is fixed for 10′ (3 m) of free cable, the LV600 will trigger at 8′ (2.5 m) above and below the fixed point. Thus, turbulence will generally not cause false switching. The cable can be fixed to a pipe, or the accessory counterweight can be used by slipping it over the cable (see drawing). The mechanical SPDT switch has no potentially dangerous mercury, is rated for 15A at 250 Vac, and can switch more than 100,000 times. The internal microswitch relay carries UL and CSA approvals. The case and cable are hermetically sealed by a two-step plastic injection molding process to ensure a leak-tight seal.

SPECIFICATIONS
Minimum Fluid Specific Gravity: 0.62 for LV610; 0.72 for LV620
Min/Max Level Differential: Approximately 152 mm (6″) to many feet, depending on cable length
Operating Temperatures: PVC Cable; Switch Rating: SPDT, 15 A @ 250 Vac-25 to 50°C (-13 to 122°F); Neoprene Cable; -25 to 50°C (-13 to 122°F)
Operating Pressure: 75 psig at 70°F./21°C Pressure rating decreases with increasing temperature
Wetted Surfaces: Polypropylene body and PVC or Neoprene cable
Counterweight Dimensions: 2″ Diameter x 2.25″ High

Please download PDF file below for full product specifications

Wetted Materials	Polypropylene, PVC, Polypropylene, Neoprene
Features	Rectangular, Circular
Media Type	Liquid
Max Operating Pressure	75 psi
Max Process Temperature	50 °C (122 °F)
Process Connection Type	Tethered
Switch Rating and Type	15 A SPDT
